Installation [09/2020 - ]: Procedure

  1. INSTALL FRONT BUMPER ASSEMBLY
    1. Move the front bumper assembly into position.
    2. Connect each connector.
    3. Engage the 13 claws.
    4. Install the 4 bolts.
    5. Install the front bumper assembly with the 10 screws.
    6. Remove the protective tape.
  2. CONNECT FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH
    1. Install 2 new clips to the front fender wheel opening moulding sub-assembly LH.

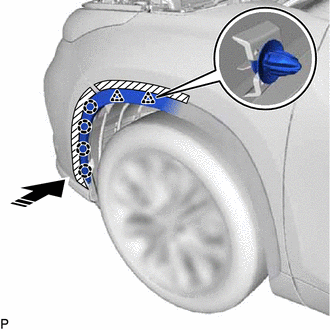

    2. Engage the 2 clips and 4 claws as shown in the illustration.
      GTY927650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Connect the front fender wheel opening moulding sub-assembly LH with the screw and 3 clips.
    4. Remove the protective tape.
  3. CONNECT FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. INSTALL COOL AIR INTAKE DUCT SEAL
    1. Install the cool air intake duct seal with the 9 clips.
  5. ADJUST FOG LIGHT ASSEMBLY (w/ Fog Light)

    Refer to ADJUSTMENT [09/2020 - ]

  6. ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to CALIBRATION [12/2019 - 10/2022] , or refer to CALIBRATION [10/2022 - 11/2023] , or refer to CALIBRATION [11/2023 - ]
