Components [09/2020 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Kick Sensor | *B | for HV Model |
| *1 | BATTERY SERVICE HOLE COVER | - | - |

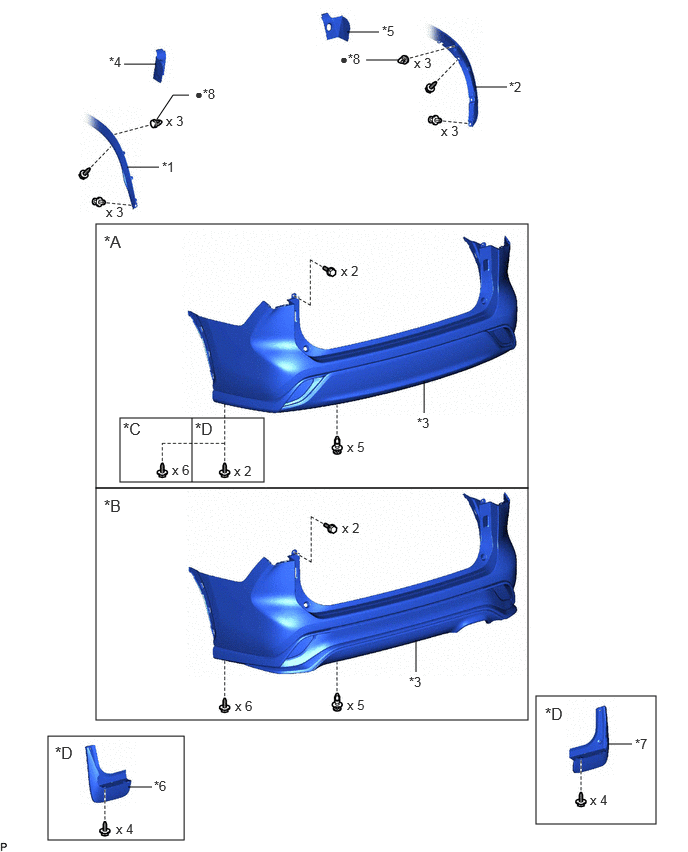

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Sport Package | *B | for Sport Package |
| *C | w/o Mudguard | *D | w/ Mudguard |
| *1 | QUARTER PANEL WHEEL OPENING MOULDING LH | *2 | QUARTER PANEL WHEEL OPENING MOULDING RH |
| *3 | REAR BUMPER ASSEMBLY | *4 | REAR COMBINATION LIGHT COVER LH |
| *5 | REAR COMBINATION LIGHT COVER RH | *6 | REAR QUARTER PANEL MUDGUARD LH |
| *7 | REAR QUARTER PANEL MUDGUARD RH | *8 | CLIP |
| • | Non-reusable part | - | - |

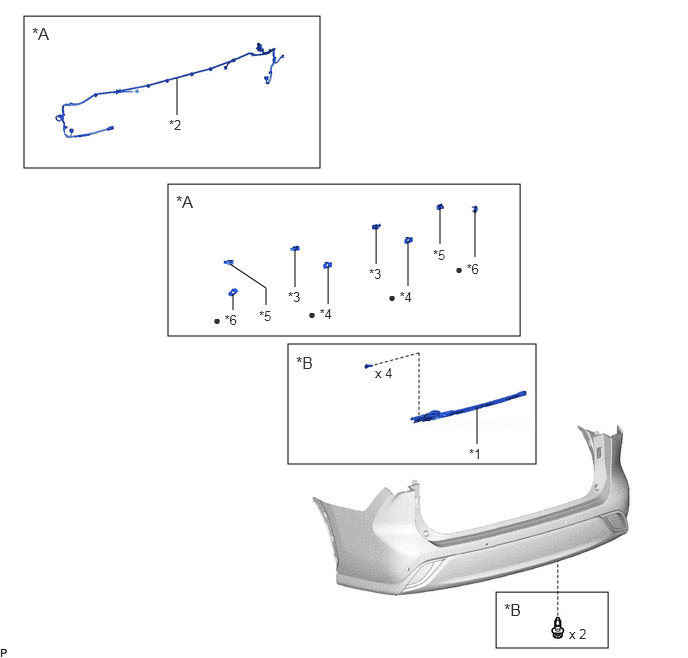

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Intuitive Parking Assist System | *B | w/ Kick Sensor |
| *1 | KICK DOOR CONTROL SENSOR WITH BRACKET | *2 | NO. 3 LUGGAGE ROOM WIRE |
| *3 | REAR CENTER ULTRASONIC SENSOR | *4 | REAR CENTER ULTRASONIC SENSOR RETAINER |
| *5 | REAR CORNER ULTRASONIC SENSOR | *6 | REAR CORNER ULTRASONIC SENSOR RETAINER |
| • | Non-reusable part | - | - |

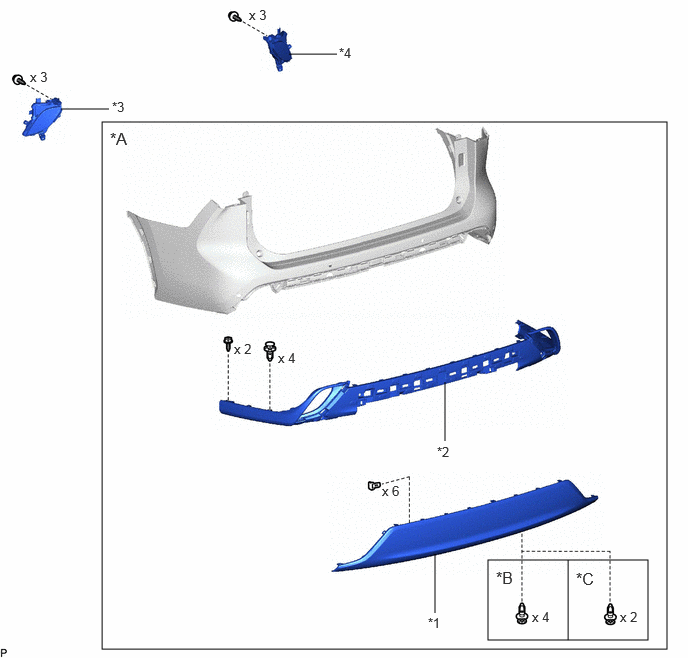

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Sport Package | *B | w/o Kick Sensor |
| *C | w/ Kick Sensor | - | - |
| *1 | REAR BUMPER EXTENSION | *2 | REAR BUMPER LOWER COVER |
| *3 | REFLEX REFLECTOR ASSEMBLY LH | *4 | REFLEX REFLECTOR ASSEMBLY RH |

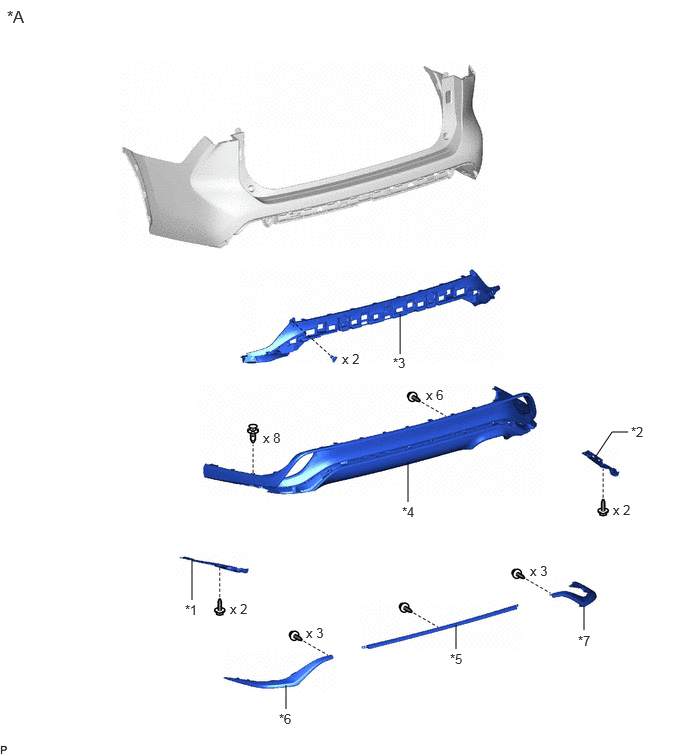

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Sport Package | - | - |
| *1 | REAR BUMPER CORNER EXTENSION LH | *2 | REAR BUMPER CORNER EXTENSION RH |
| *3 | REAR BUMPER EXTENSION | *4 | REAR BUMPER LOWER COVER |
| *5 | REAR BUMPER MOULDING | *6 | REAR BUMPER SIDE MOULDING LH |
| *7 | REAR BUMPER SIDE MOULDING RH | - | - |

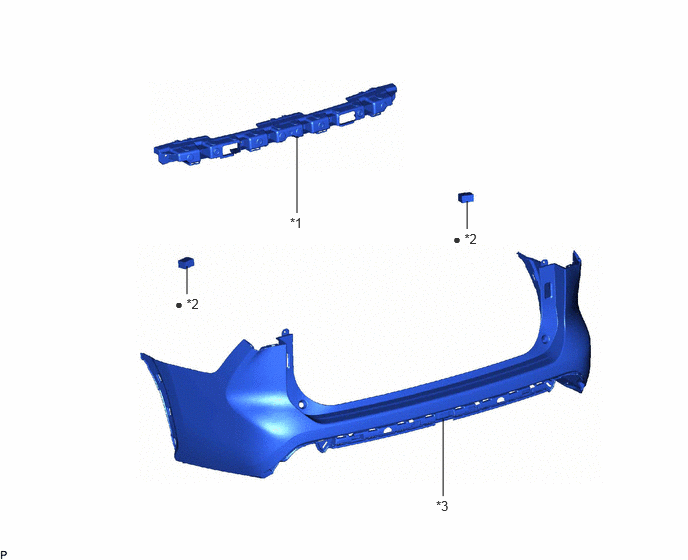

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR BUMPER ENERGY ABSORBER | *2 | REAR BUMPER PAD LH |
| *3 | REAR BUMPER COVER | - | - |
| • | Non-reusable part | - | - |

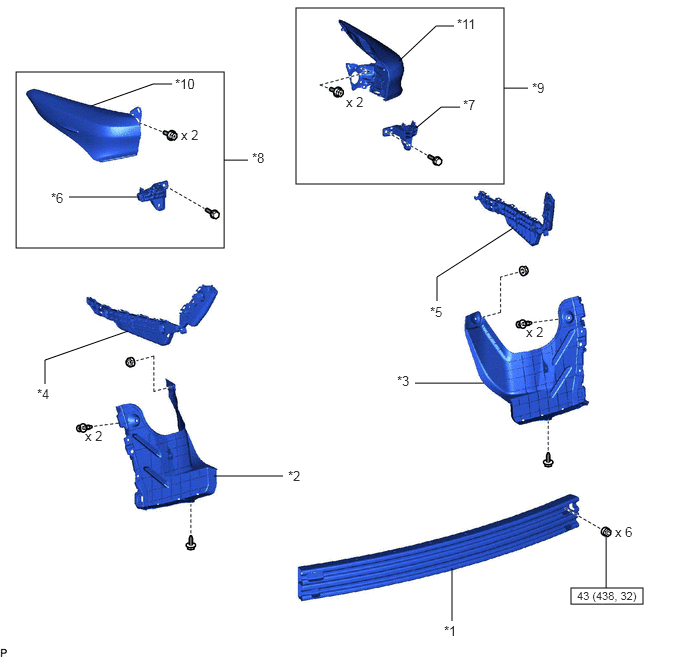

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR BUMPER REINFORCEMENT | *2 | REAR BUMPER SIDE SEAL LH |
| *3 | REAR BUMPER SIDE SEAL RH | *4 | REAR BUMPER SIDE SUPPORT LH |
| *5 | REAR BUMPER SIDE SUPPORT RH | *6 | REAR BUMPER UPPER RETAINER LH |
| *7 | REAR BUMPER UPPER RETAINER RH | *8 | REAR COMBINATION LIGHT ASSEMBLY LH |
| *9 | REAR COMBINATION LIGHT ASSEMBLY RH | *10 | REAR COMBINATION LIGHT SUB-ASSEMBLY LH |
| *11 | REAR COMBINATION LIGHT SUB-ASSEMBLY RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
