Removal [09/2020 - 10/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    except Sport Package:

    Refer to REMOVAL [09/2020 - 11/2023]

    for Sport Package:

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

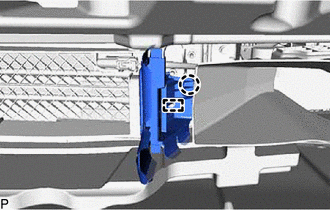

    1. Disengage the claw and guide to remove the front radiator side air guide plate LH.
      GTY939283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

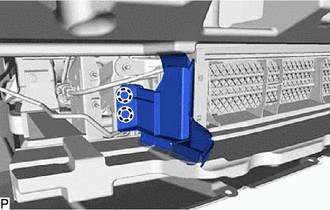

    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY897686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

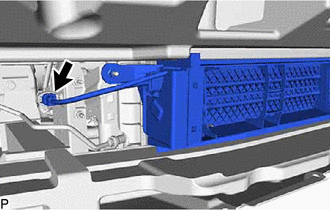

    1. Disconnect the connector.
      GTY897685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

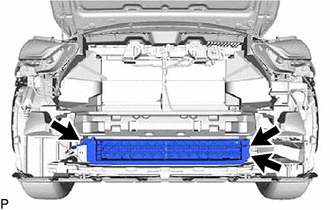

    2. Remove the 3 nuts and radiator shutter sub-assembly.
      GTY939282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
