Disassembly [10/2021 - ]: Procedure

  1. REMOVE NO. 5 ENGINE ROOM MAIN WIRE

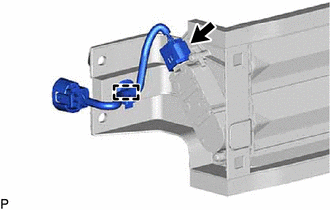

    1. Disengage the clamp.
      GTY1110642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 5 engine room wire.
