Components [12/2019 - 09/2020]

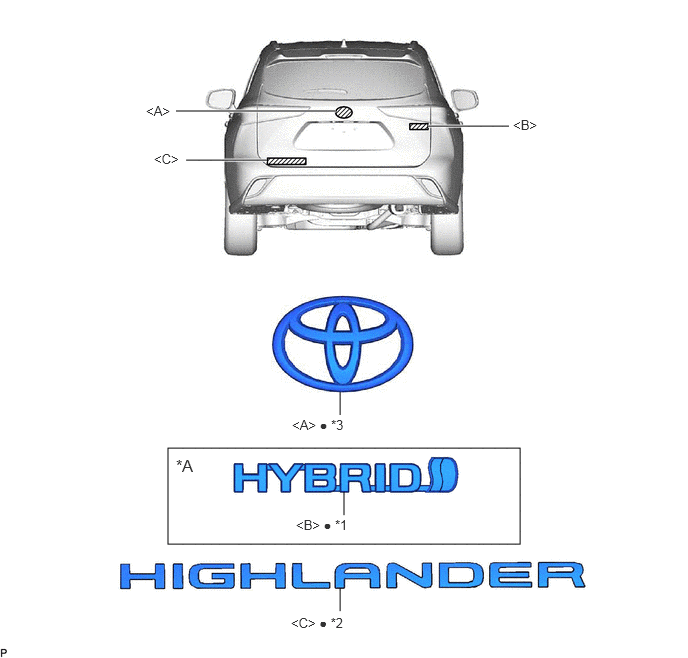

Fig 1: Name Plate Replacement Components [12/2019 - 09/2020] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE	*2	NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
*3	SYMBOL EMBLEM	-	-
•	Non-reusable part	-	-

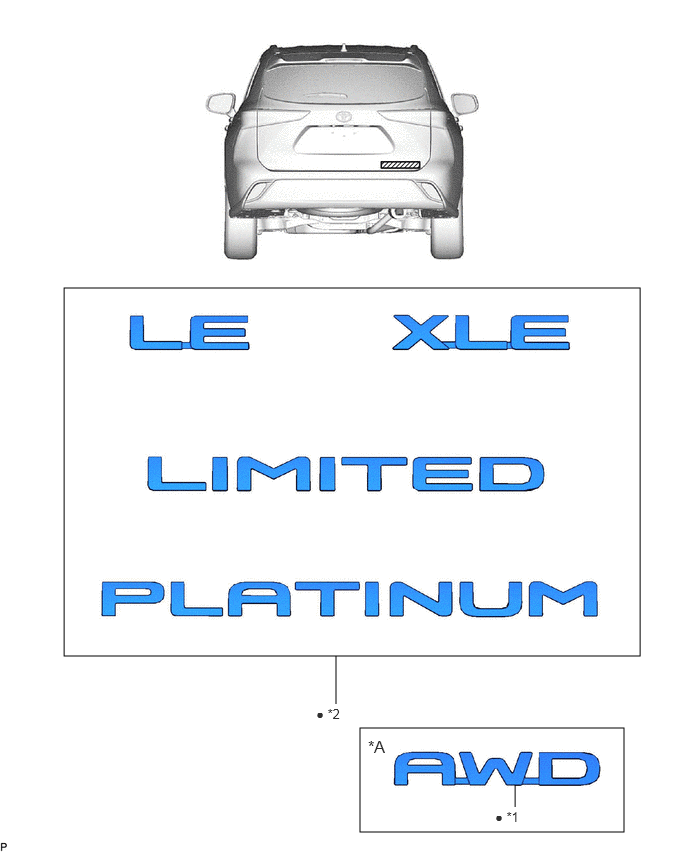

Fig 2: Name Plate Replacement Components [12/2019 - 09/2020] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE	*2	NO. 5 BACK DOOR NAME PLATE
•	Non-reusable part	-	-

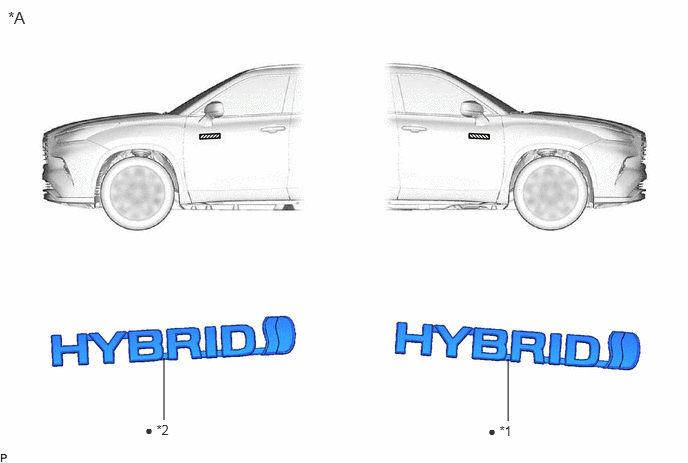

Fig 3: Name Plate Replacement Components [12/2019 - 09/2020] (3 Of 3)

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	FRONT DOOR NAME PLATE	*2	NO. 2 FRONT DOOR NAME PLATE
•	Non-reusable part	-	-
