Disassembly [12/2019 - ]: Procedure

  1. REMOVE NO. 1 ROOF SIDE GARNISH LID
    1. Disengage the 4 claws to remove the No. 1 roof side garnish lid as shown in the illustration.
      GTY1006563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE NO. 2 ROOF SIDE GARNISH LID
    1. Disengage the 4 claws to remove the No. 2 roof side garnish lid as shown in the illustration.
      GTY1006570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FRONT ROOF SIDE GARNISH SUB-ASSEMBLY

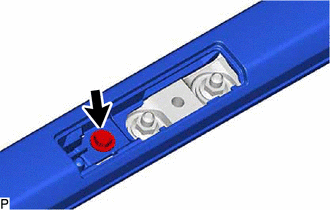

    1. Remove the bolt.
      GTY1015796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

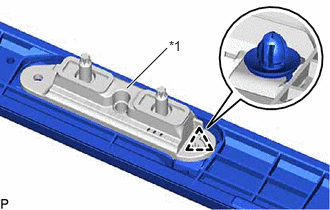

    2. Disengage the clip to remove the front roof rack leg.
      GTY1016344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Roof Rack Leg

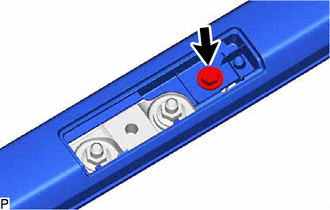

    3. Remove the bolt.
      GTY1015778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

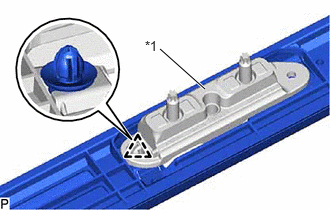

    4. Disengage the clip to remove the front roof side garnish sub-assembly from the rear roof rack leg.
      GTY1014932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Roof Rack Leg
    5. Remove the 2 clips from the front roof side garnish sub-assembly.
  4. REMOVE NO. 1 ROOF CARRIER SEAL

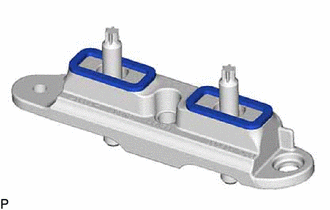

    1. Remove the 2 No. 1 roof carrier seals.
      GTY1007086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 ROOF CARRIER SEAL

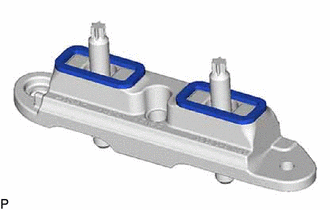

    1. Remove the 2 No. 2 roof carrier seals.
      GTY1007082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
