Steering Pad Switch Circuit [12/2019 - 10/2022]: Wiring Diagram

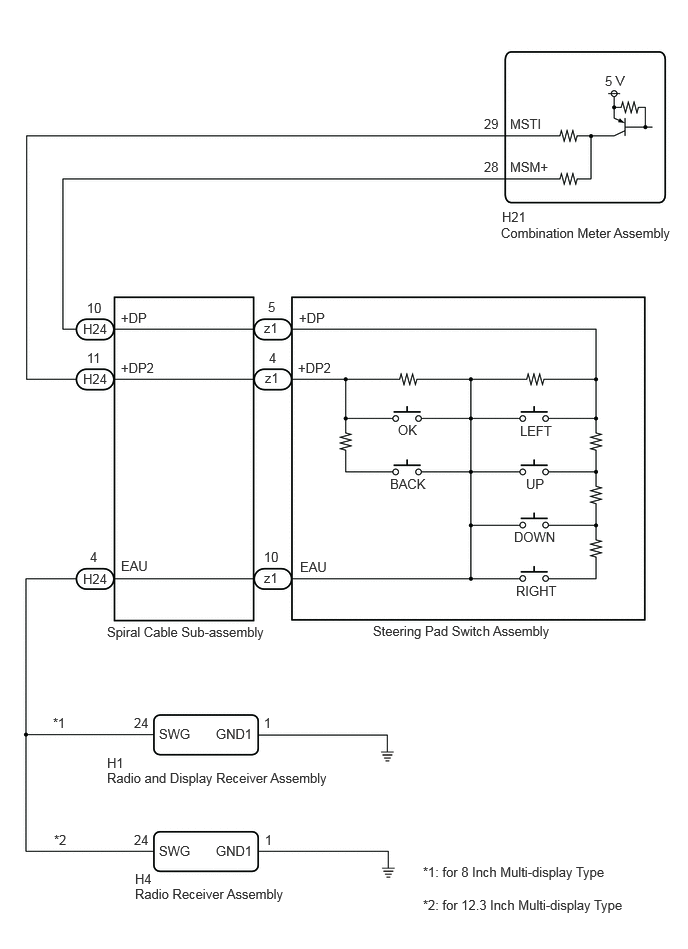

Fig 1: Steering Pad Switch Circuit [12/2019 - 10/2022]

GTY984226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
