Meter / Gauge System (Except 12.3 Inch Display) - Symptom Tests (2 Of 2) & Circuit Tests
>>
METER / GAUGE SYSTEM (except 12.3 Inch Display)
>>
Steering Pad Switch Circuit [10/2022 - ]
>>
Wiring Diagram
Steering Pad Switch Circuit [10/2022 - ]: Wiring Diagram

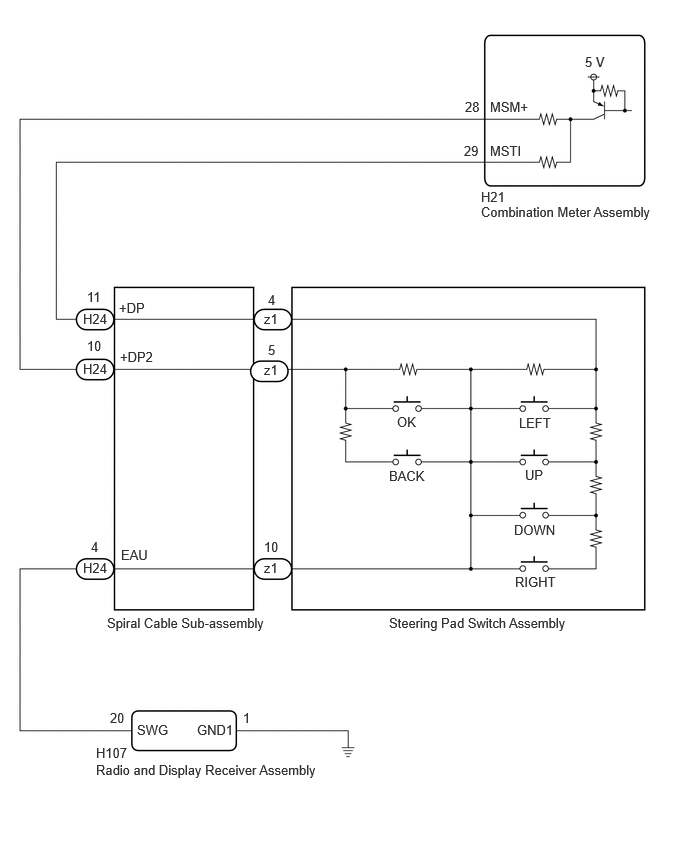

Fig 1: Steering Pad Switch Circuit [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
