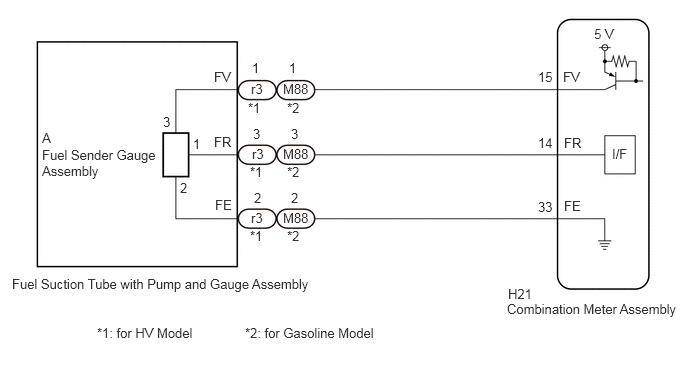

DTC B1500-13: Fuel Sender Circuit Open [10/2022 - ]: Wiring Diagram

GTY943663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
