Reassembly [12/2019 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS

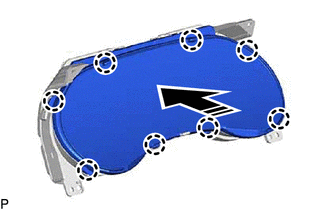

    1. Engage the 8 claws as shown in the illustration to install the combination meter glass.
      GTY887619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
