Installation [12/2019 - ]: Procedure

  1. INSTALL METER MIRROR SUB-ASSEMBLY

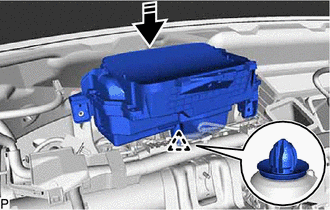

    1. Engage the clip as shown in the illustration.
      GTY894469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the meter mirror sub-assembly with the 3 bolts.
    3. Connect the connector.
  2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
