Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> HEADUP Display System - Diagnostics - Introduction >> HEADUP Display System >> Parts Location [11/2023 - ] >> Illustration

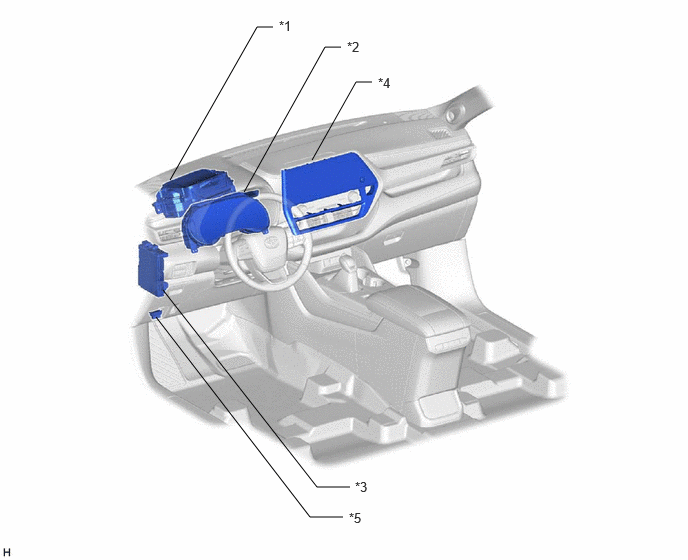

Parts Location [11/2023 - ]: Illustration

GTY1121393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 METER MIRROR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 POWER DISTRIBUTION BOX ASSEMBLY
- ECU-IGR NO. 3 FUSE
- ECU-IG1 NO. 4 FUSE		 *4 RADIO AND DISPLAY RECEIVER ASSEMBLY
*5 DLC3 - -
