System Diagram [12/2019 - 10/2022]

HINT:

Refer to System Diagram of CAN Communication System.

For HV Model: Refer to SYSTEM DIAGRAM [12/2019 - 10/2021] , or refer to SYSTEM DIAGRAM [10/2021 - 10/2022]

For Gasoline Model: Refer to SYSTEM DIAGRAM [12/2019 - 10/2022]

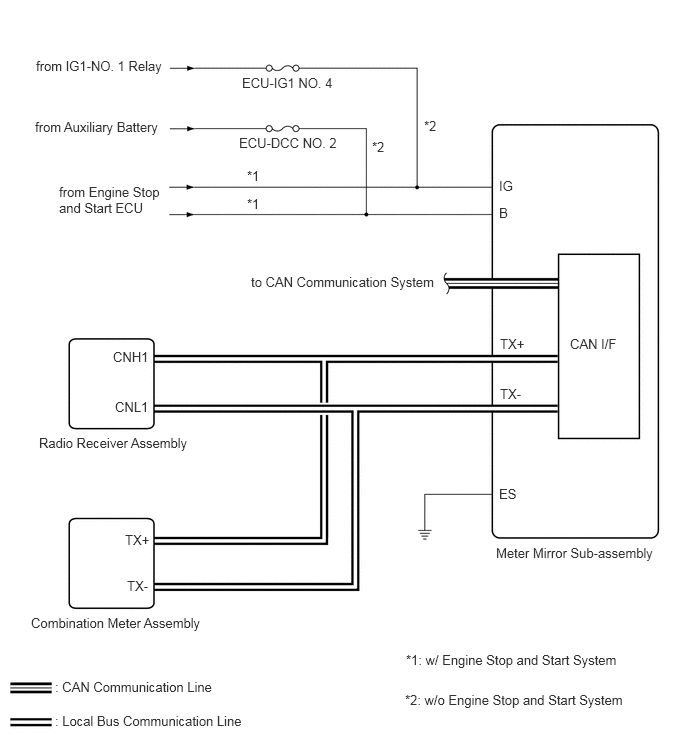

Fig 1: Headup Display System Diagram [12/2019 - 10/2022]
