LIGHTING SYSTEM (w/o AFS)
>>
LO-beam Headlight does not Illuminate [11/2023 - ]
>>
Wiring Diagram
LO-beam Headlight does not Illuminate [11/2023 - ]: Wiring Diagram

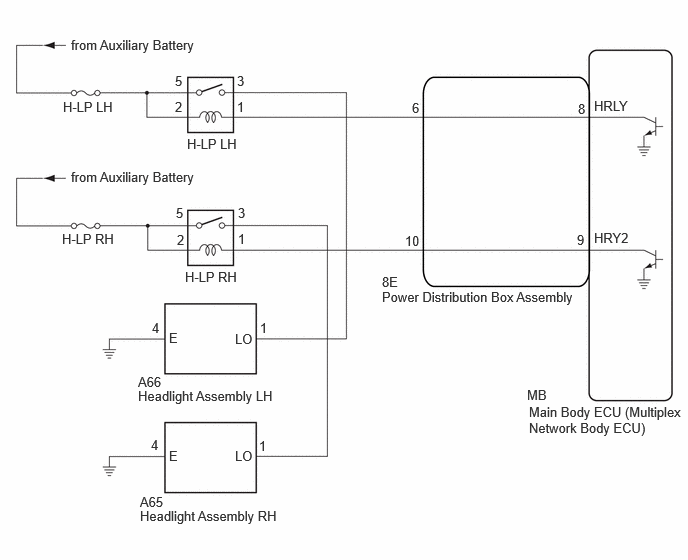

Fig 1: LO-beam Headlight does not Illuminate [11/2023 - ]
