High Beam Headlight Circuit [12/2019 - 09/2020]: Wiring Diagram

  1. w/ Projector Headlight

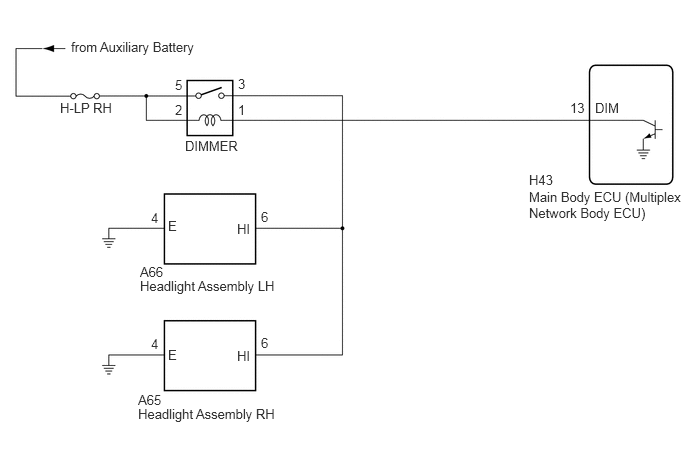

    Fig 1: w/ Projector Headlight
    GTY913784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Projector Headlight
    Fig 2: w/o Projector Headlight
    GTY936821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
