High Beam Headlight Circuit [11/2023 - ]: Wiring Diagram

  1. w/ Projector Headlight (for LED Type Parking Light)

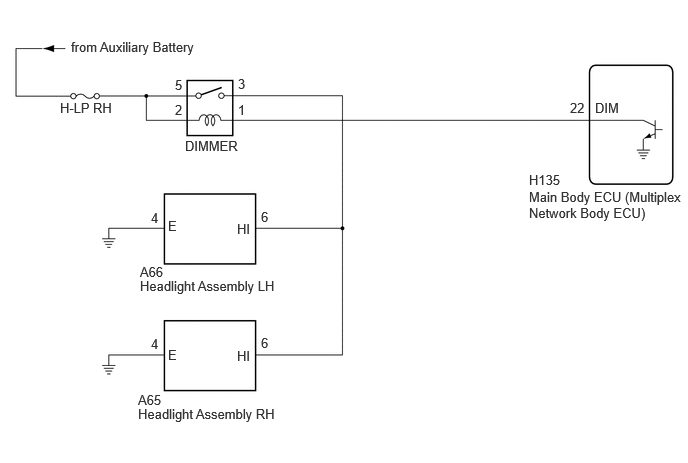

    Fig 1: w/ Projector Headlight (for LED Type Parking Light) [11/2023 - ]
    GTY1179730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Projector Headlight (for Bulb Type Parking Light), w/o Projector Headlight
    Fig 2: w/ Projector Headlight (for Bulb Type Parking Light), w/o Projector Headlight [11/2023 - ]
    GTY1179013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
