Parts Location [11/2023 - ]: Illustration
| *A | w/ Front Fog Light | *B | w/ Memory |
| *C | w/ Door Mirror Foot Light | *D | for HV Model |
| *E | for Gasoline Model | *F | except Sport Package |
| *G | for Sport Package | - | - |
| *1 | HEADLIGHT ASSEMBLY LH - FRONT TURN SIGNAL LIGHT BULB LH - FRONT TURN SIGNAL LIGHT SOCKET LH - FRONT SIDE MAKER LIGHT BULB LH - FRONT SIDE MAKER LIGHT SOCKET AND WIRE LH |
*2 | HEADLIGHT ASSEMBLY RH - FRONT TURN SIGNAL LIGHT BULB RH - FRONT TURN SIGNAL LIGHT SOCKET RH - FRONT SIDE MAKER LIGHT BULB RH - FRONT SIDE MAKER LIGHT SOCKET AND WIRE RH |
| *3 | FOG LIGHT ASSEMBLY LH | *4 | FOG LIGHT ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *11 | FORWARD RECOGNITION CAMERA | *12 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *13 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *14 | ECM |
| *15 | OUTER MIRROR LIGHT ASSEMBLY LH | *16 | OUTER MIRROR LIGHT ASSEMBLY RH |
| *17 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *18 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FOG FR RELAY (w/ Front Fog Light) - H-LP RH RELAY - H-LP LH RELAY - DRL RELAY (w/ Projector Headlight (for LED Type Parking Light)) - DIMMER RELAY (w/ Projector Headlight (for LED Type Parking Light)) - FOG FR FUSE (w/ Front Fog Light without Stop and Start System) - DRL FUSE (w/ Projector Headlight (for LED Type Parking Light)) - H-LP RH FUSE - H-LP LH FUSE - PDB-ALT NO. 1 FUSE |
| *19 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR TURN SIGNAL LIGHT BULB LH |
*2 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR TURN SIGNAL LIGHT BULB RH |
| *3 | REAR LIGHT ASSEMBLY LH - BACK UP LIGHT BULB LH |
*4 | REAR LIGHT ASSEMBLY RH - BACK UP LIGHT BULB RH |
| *5 | LICENSE PLATE LIGHT ASSEMBLY LH - LICENSE PLATE LIGHT BULB LH |
*6 | LICENSE PLATE LIGHT ASSEMBLY RH - LICENSE PLATE LIGHT BULB RH |
| *7 | CENTER STOP LIGHT ASSEMBLY | - | - |
| *A | for HV Model | - | - |

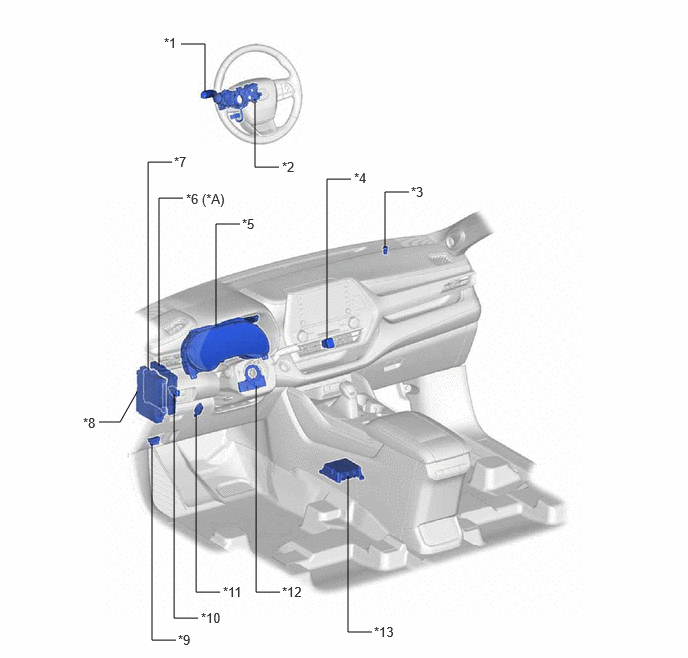

| *1 | TURN SIGNAL SWITCH | *2 | STEERING WHEEL SWITCH HOUSING |
| *3 | AUTOMATIC LIGHT CONTROL SENSOR | *4 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | HYBRID VEHICLE CONTROL ECU |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | POWER DISTRIBUTION BOX ASSEMBLY - FOG FR RLY-S RELAY - TAIL RELAY - BKUP LP RELAY - ECU-B NO. 2 FUSE - ECU-DCC NO. 2 FUSE - HAZ FUSE - METER-IGR FUSE - STOP FUSE - ECU-ACC FUSE - BKUP LP FUSE |
| *9 | DLC3 | *10 | AUTO HIGH BEAM SWITCH |
| *11 | STOP LIGHT SWITCH ASSEMBLY | *12 | STEERING SENSOR |
| *13 | AIRBAG SENSOR ASSEMBLY | - | - |
