System Diagram [12/2019 - 09/2020]

GTY876100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

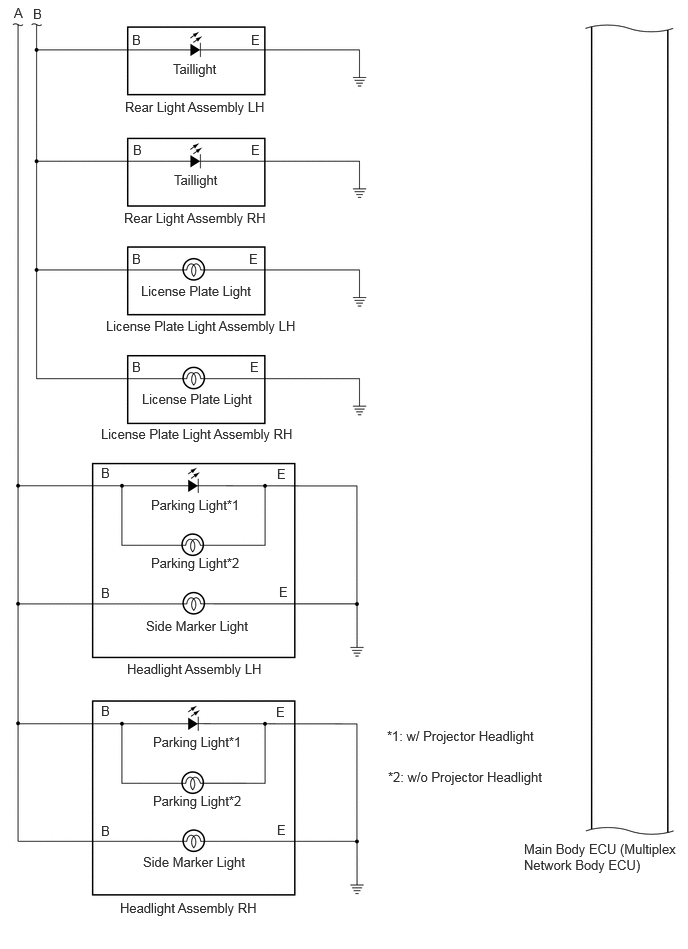

GTY852383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY886527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

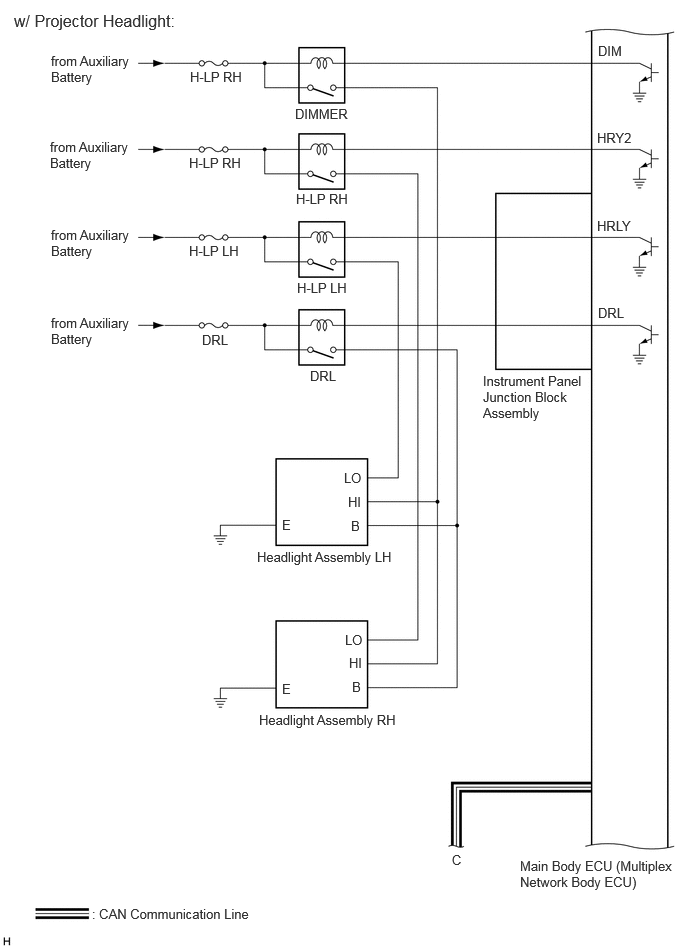

GTY854502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

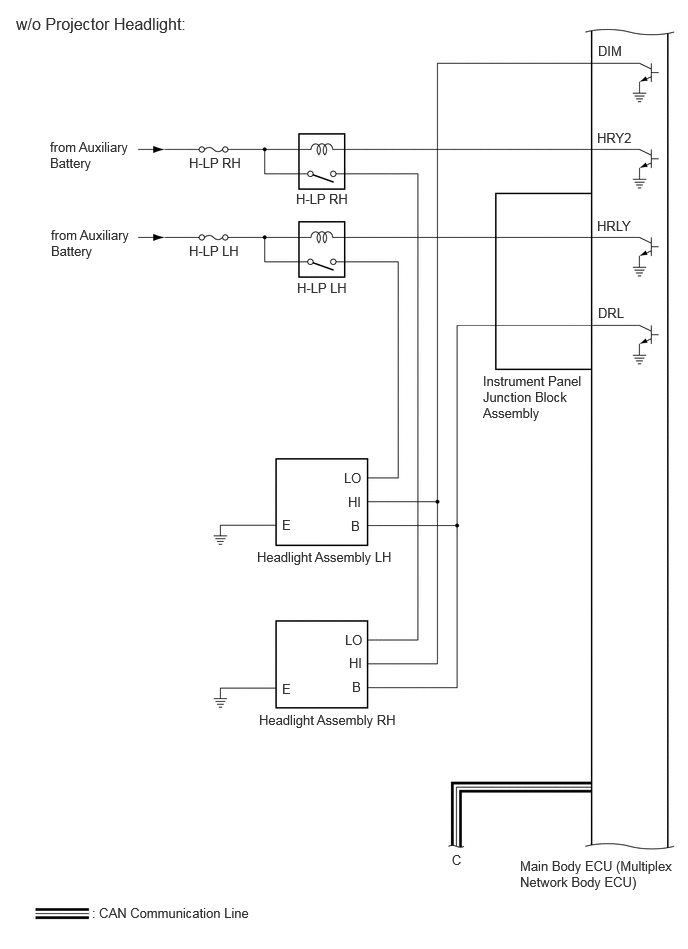

GTY872949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY944619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY896134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY902655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY902539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY878554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY934620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY929906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY944739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY842371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY906151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. HEADLIGHT ASSEMBLY CIRCUIT (w/ Projector Headlight)
    GTY899984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. HEADLIGHT ASSEMBLY CIRCUIT (w/o Projector Headlight)
    GTY941093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
