System Diagram [09/2020 - 11/2023]

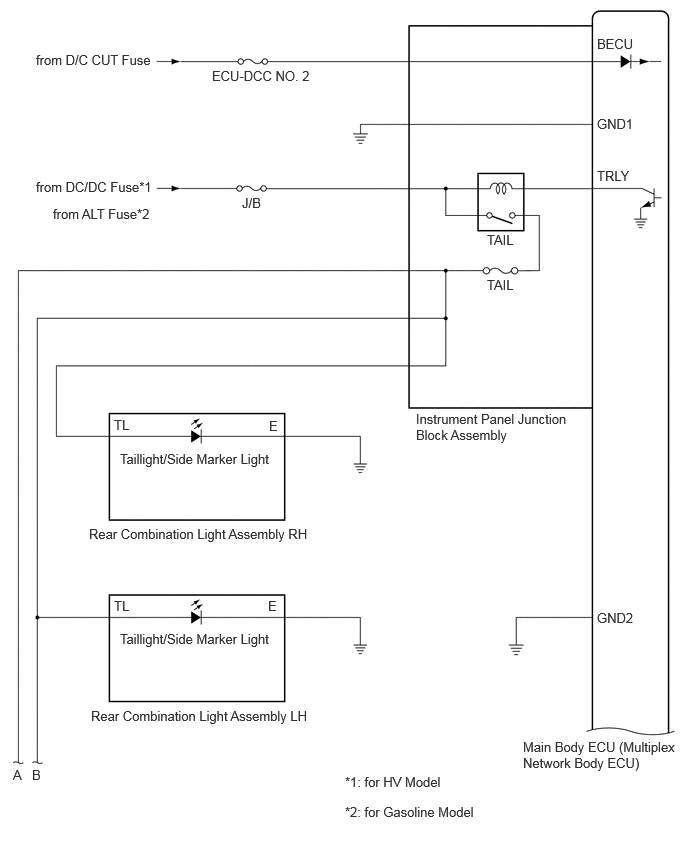

GTY876100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

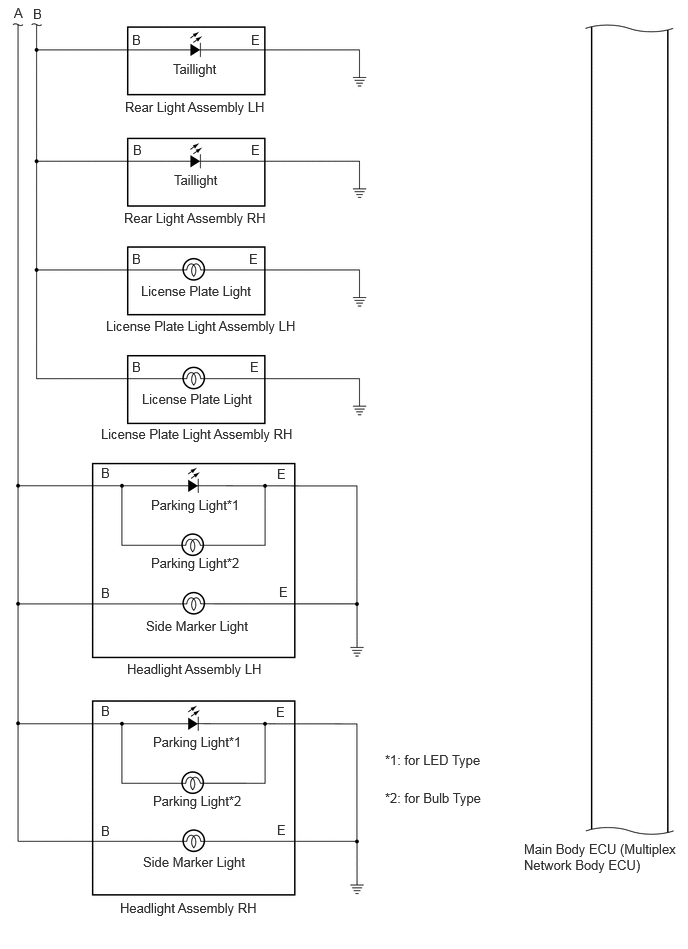

GTY985324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

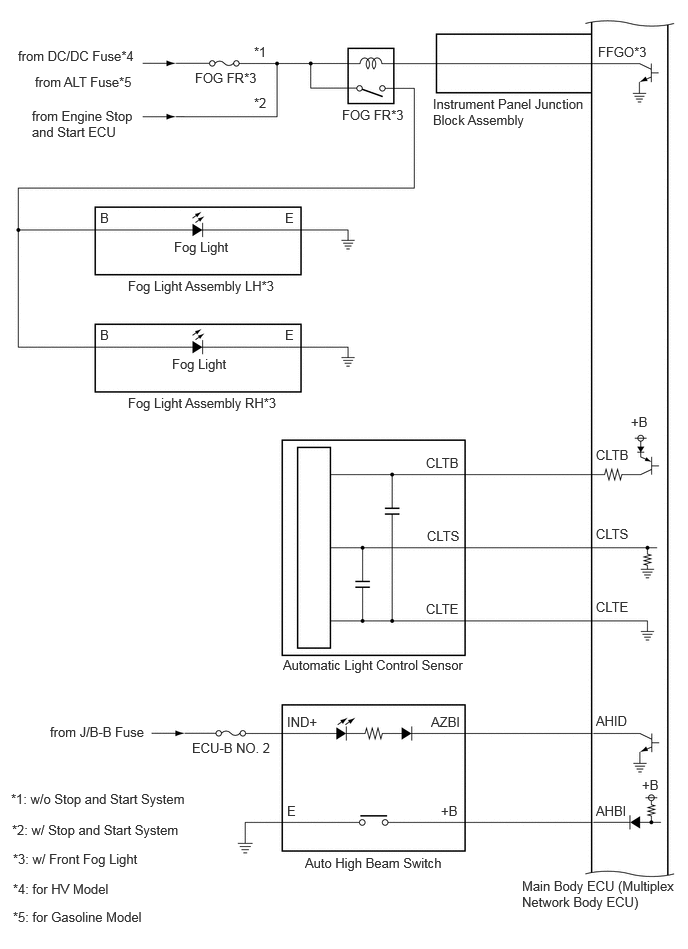

GTY886527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

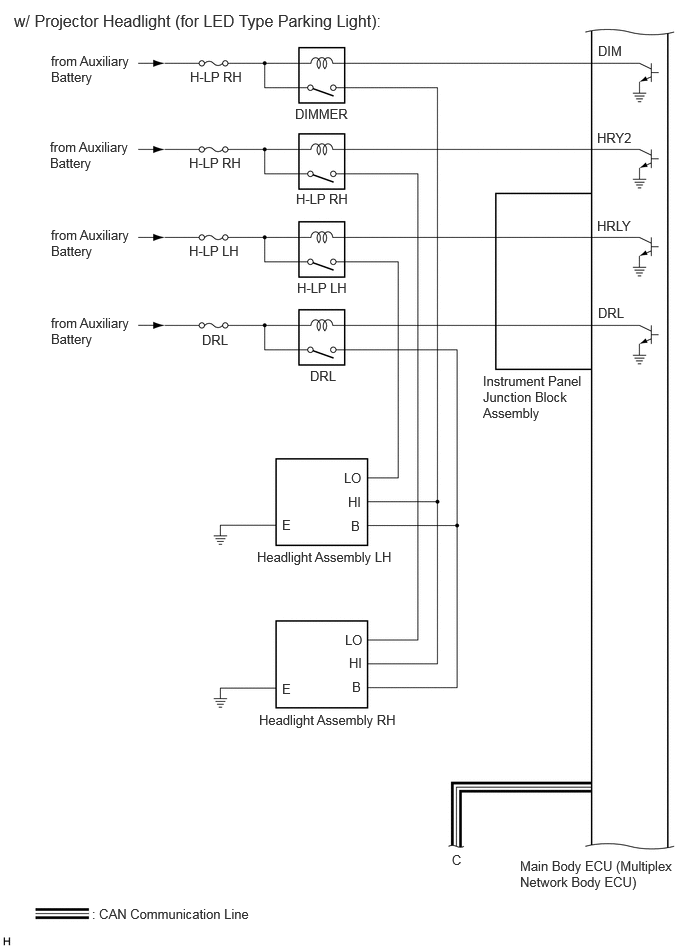

GTY984454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

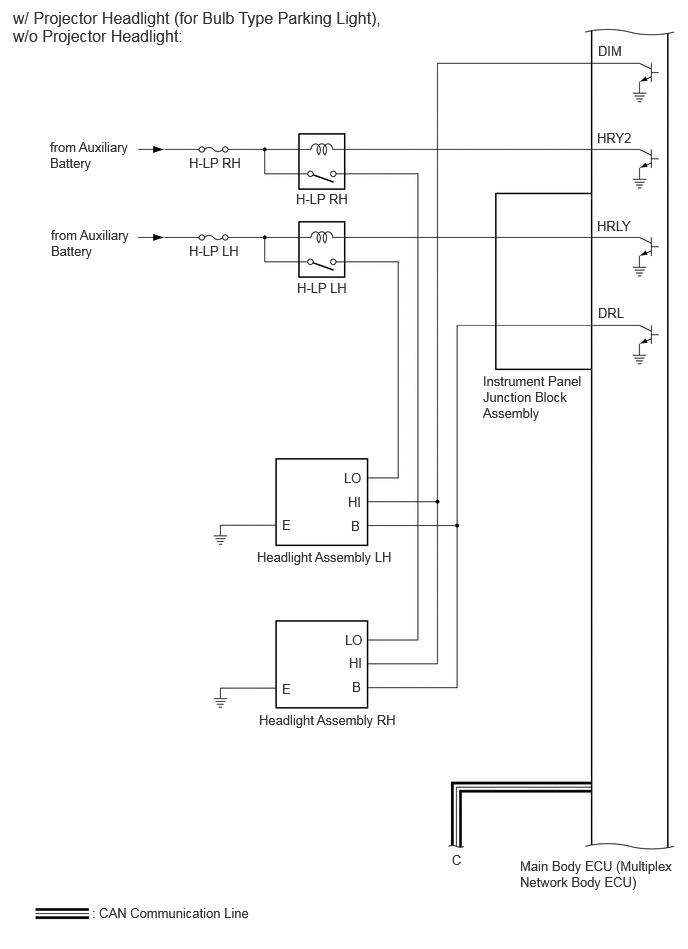

GTY984468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

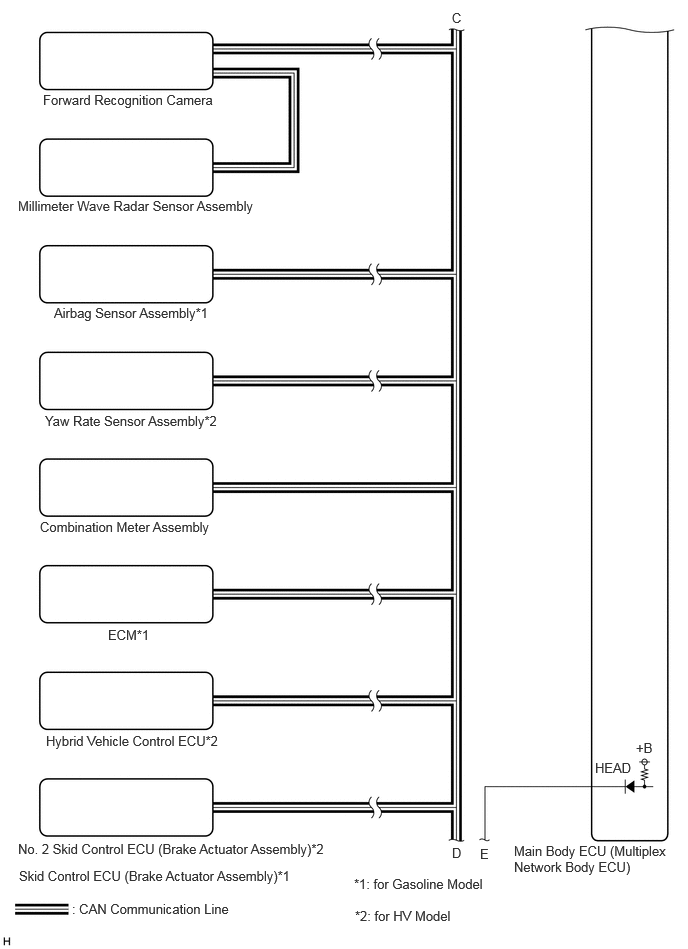

GTY944619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

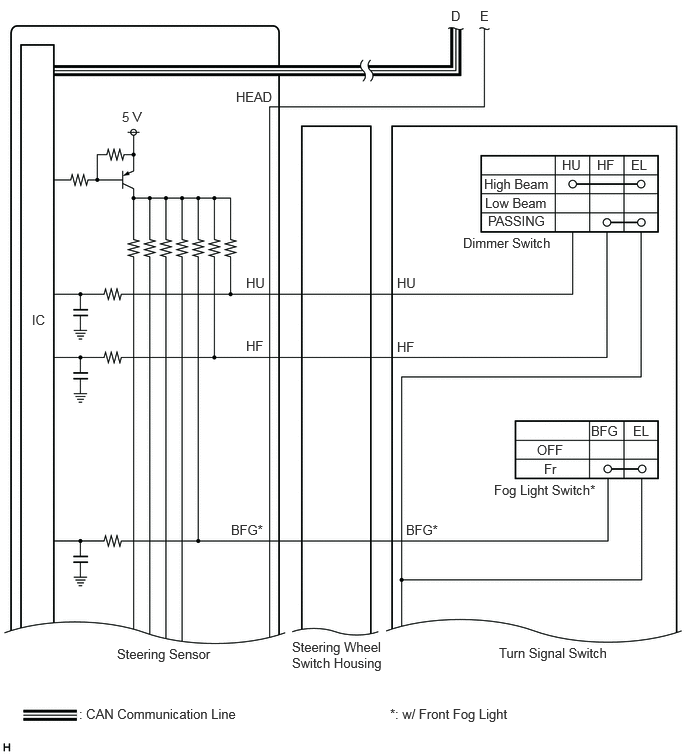

GTY896134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

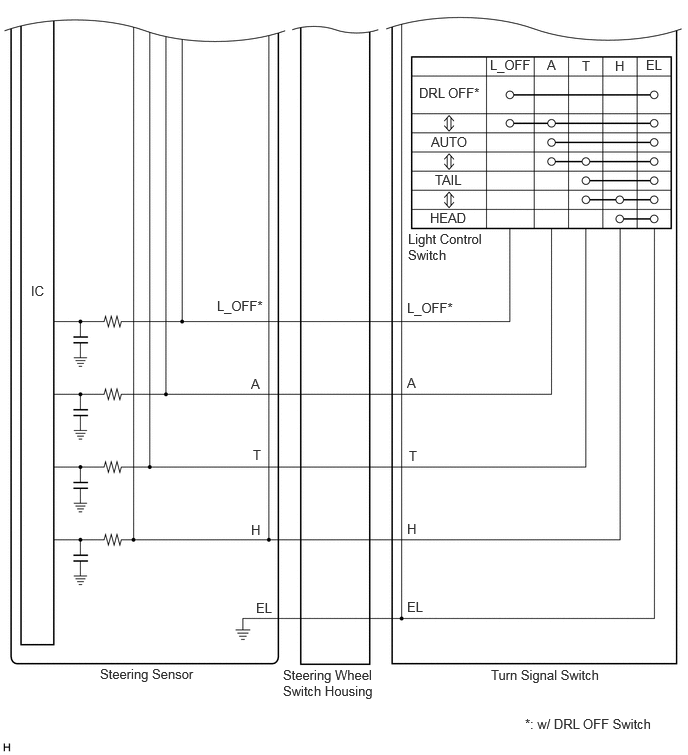

GTY902655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

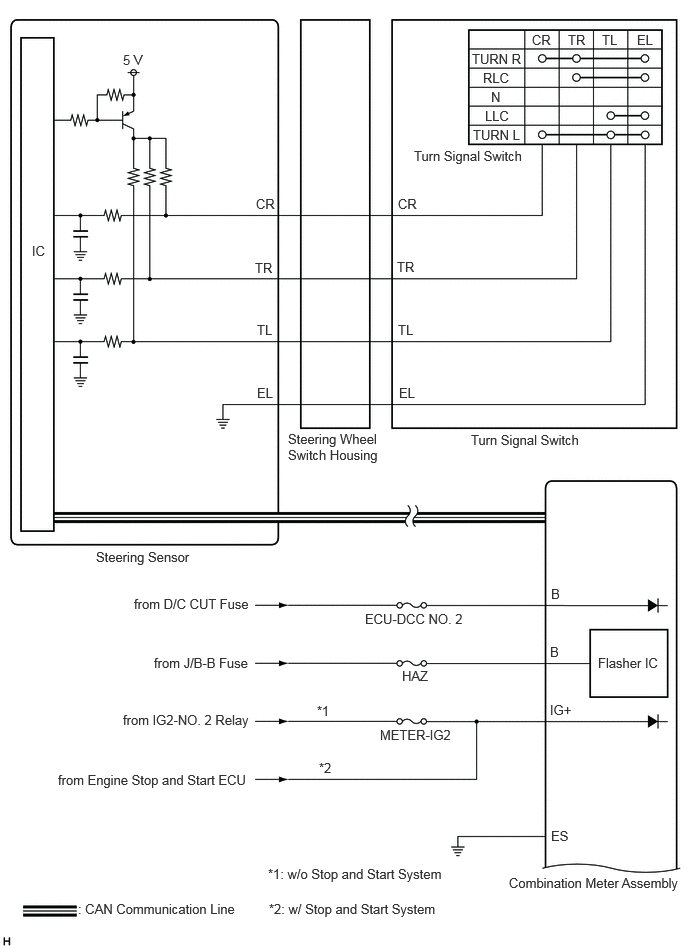

GTY902539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

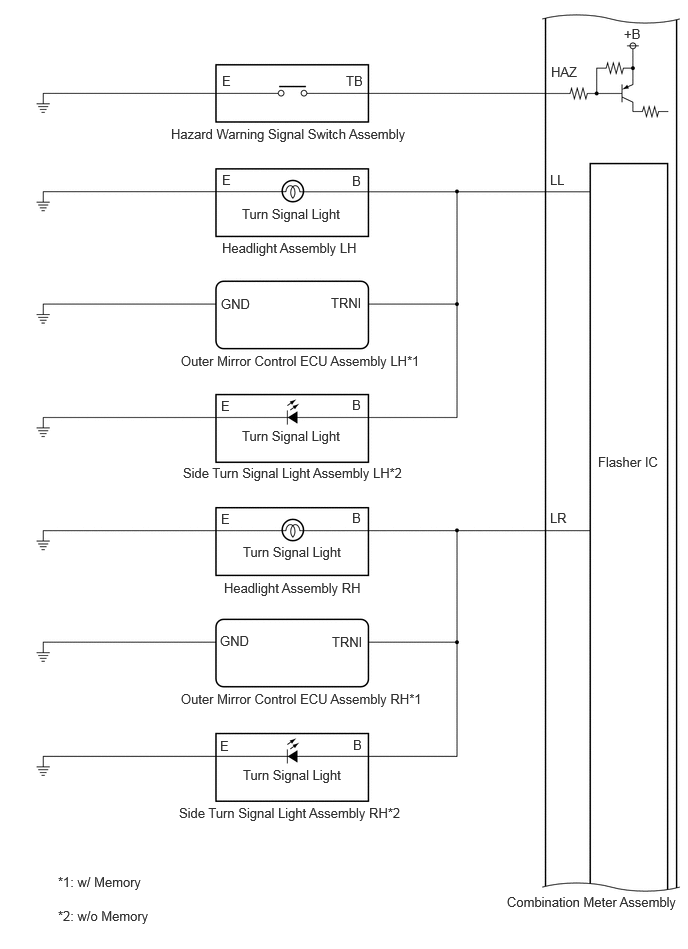

GTY878554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

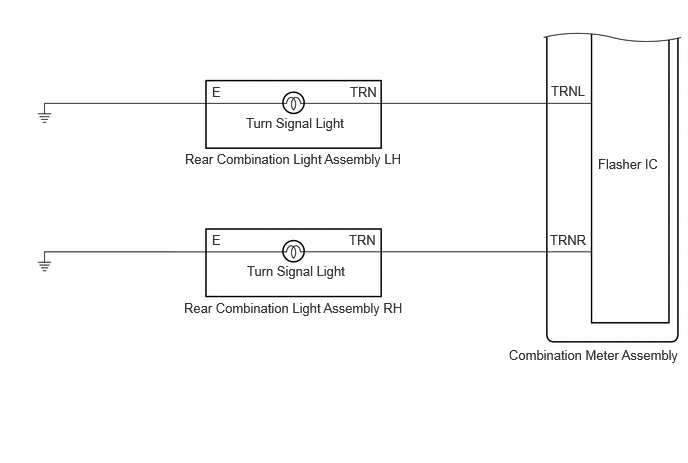

GTY934620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

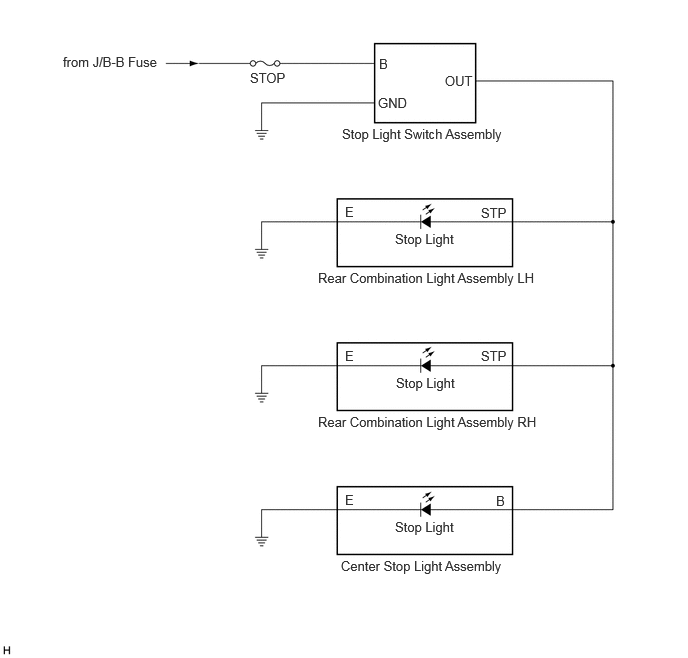

GTY929906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

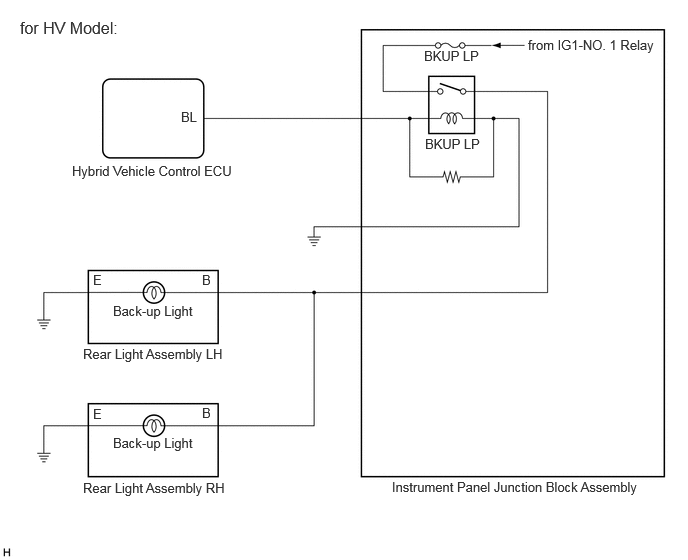

GTY944739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

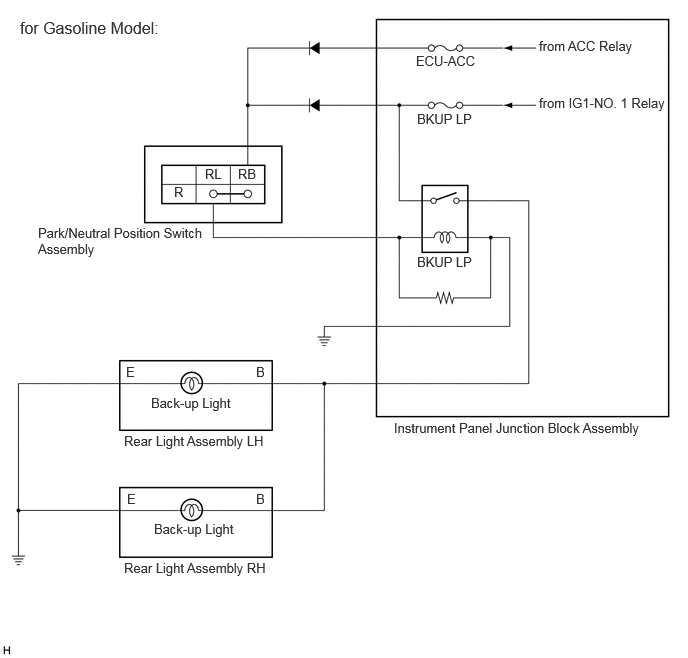

GTY842371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

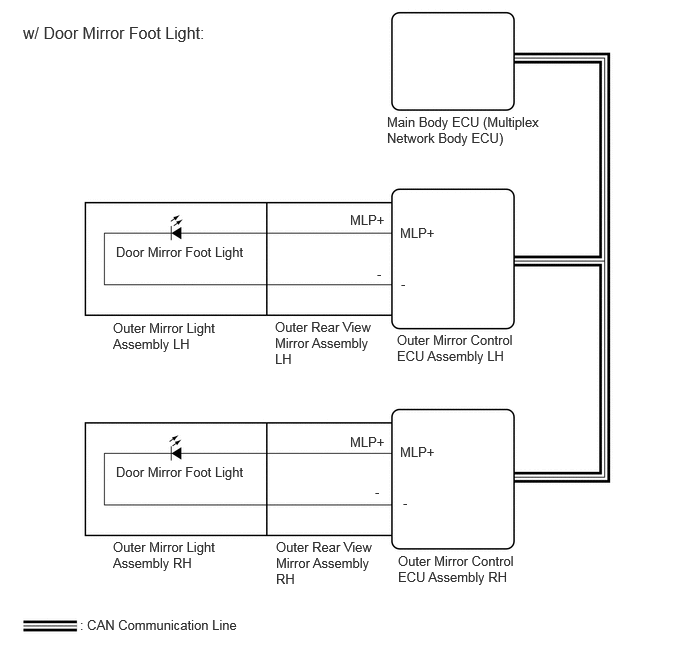

GTY906151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

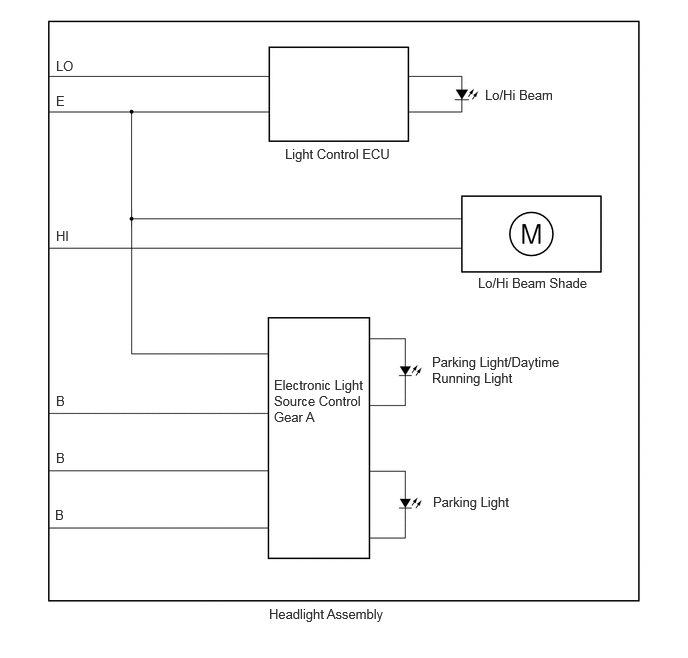

  1. HEADLIGHT ASSEMBLY CIRCUIT (w/ Projector Headlight (for LED Type Parking Light))
    GTY899984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. HEADLIGHT ASSEMBLY CIRCUIT (w/ Projector Headlight (for Bulb Type Parking Light), w/o Projector Headlight)
    GTY941093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
