Daytime Running Light Circuit [12/2019 - 09/2020]: Wiring Diagram

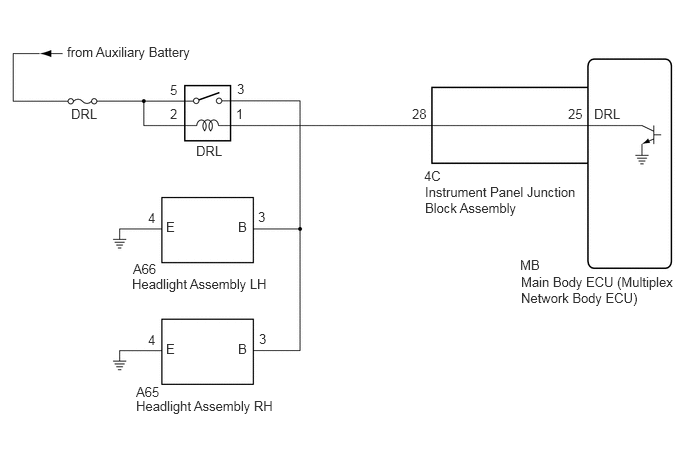

  1. w/ Projector Headlight
    GTY929904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Projector Headlight
    GTY873546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
