System Diagram [12/2019 - 11/2023]

GTY876100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

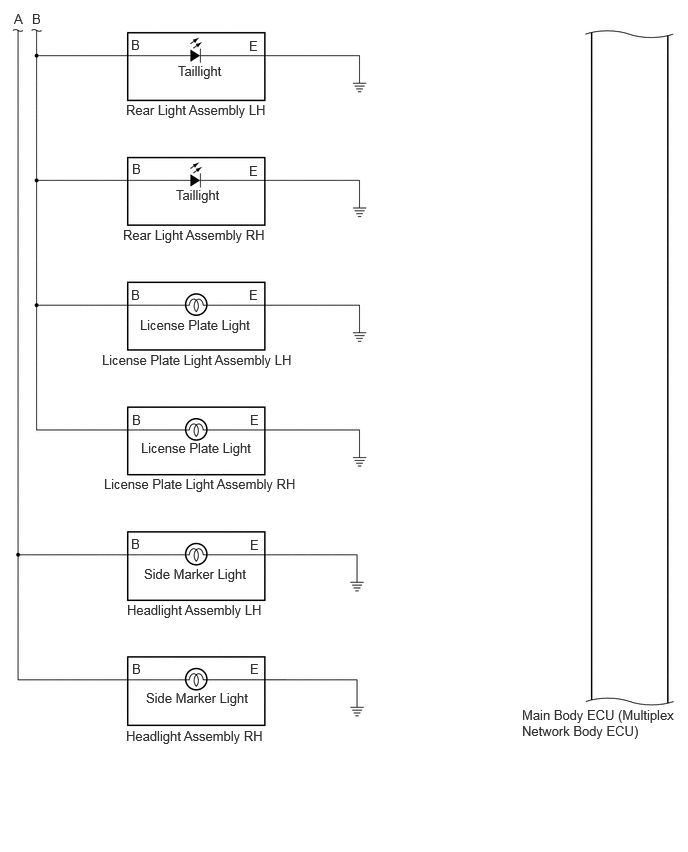

GTY880333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

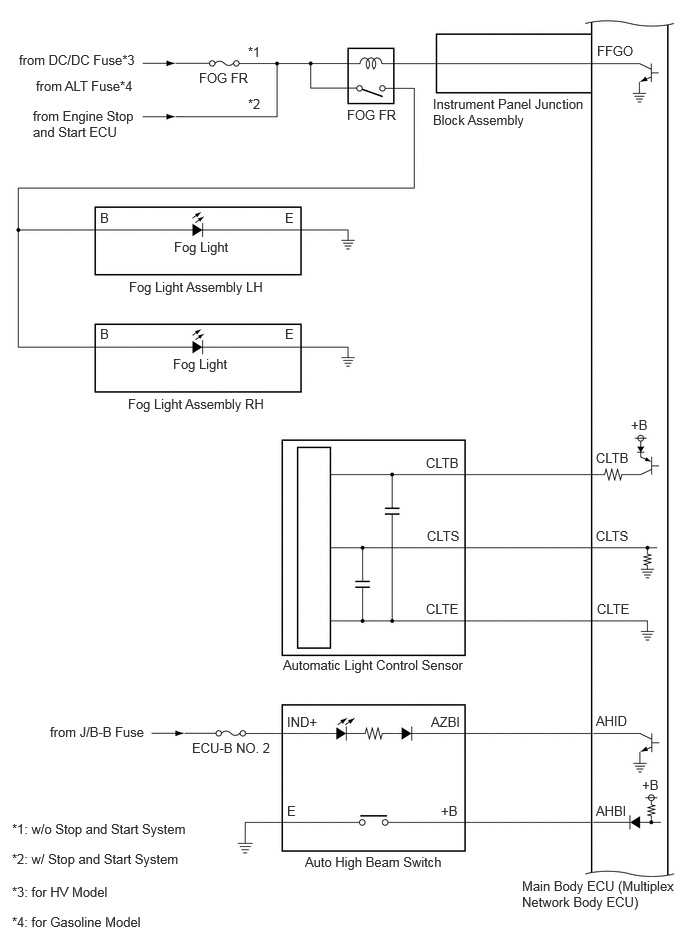

GTY886526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

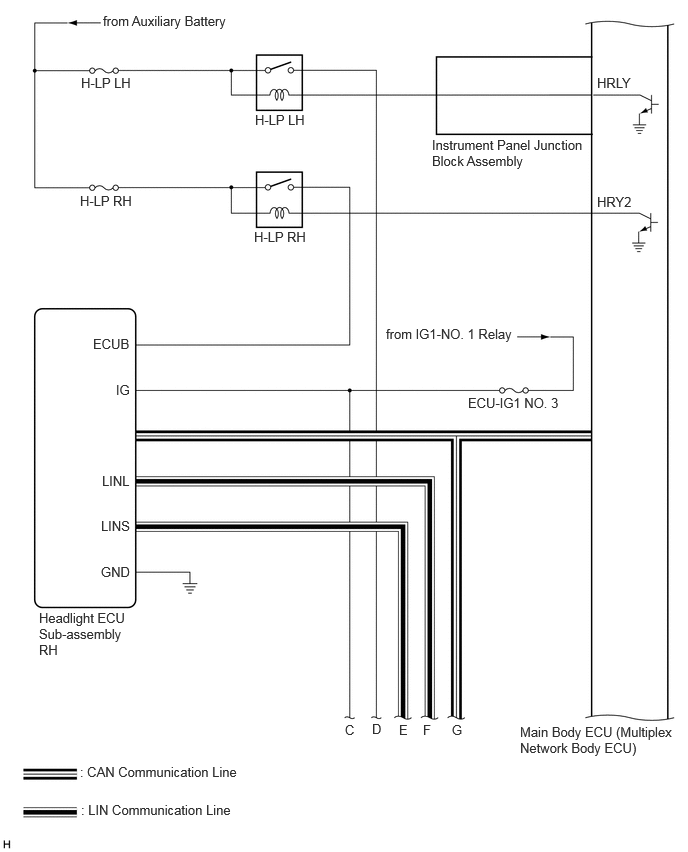

GTY894630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

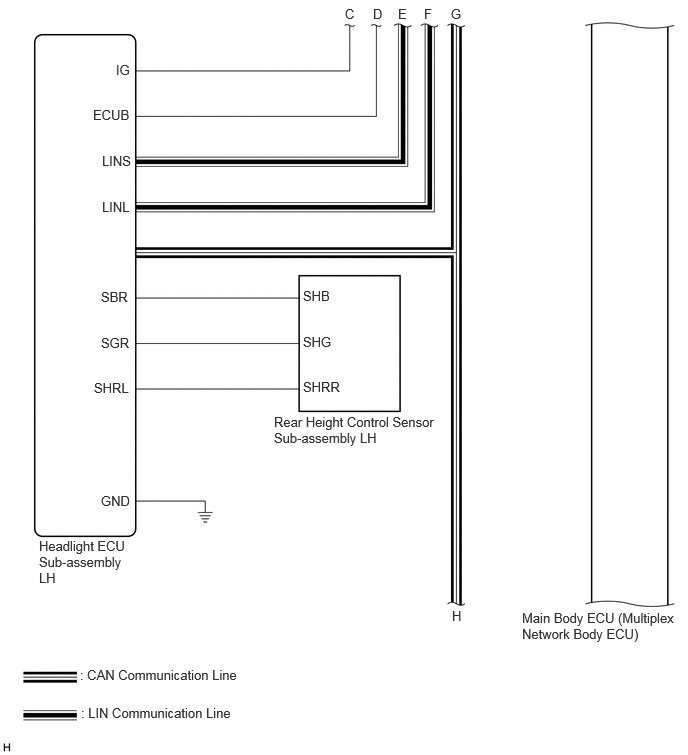

GTY900241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

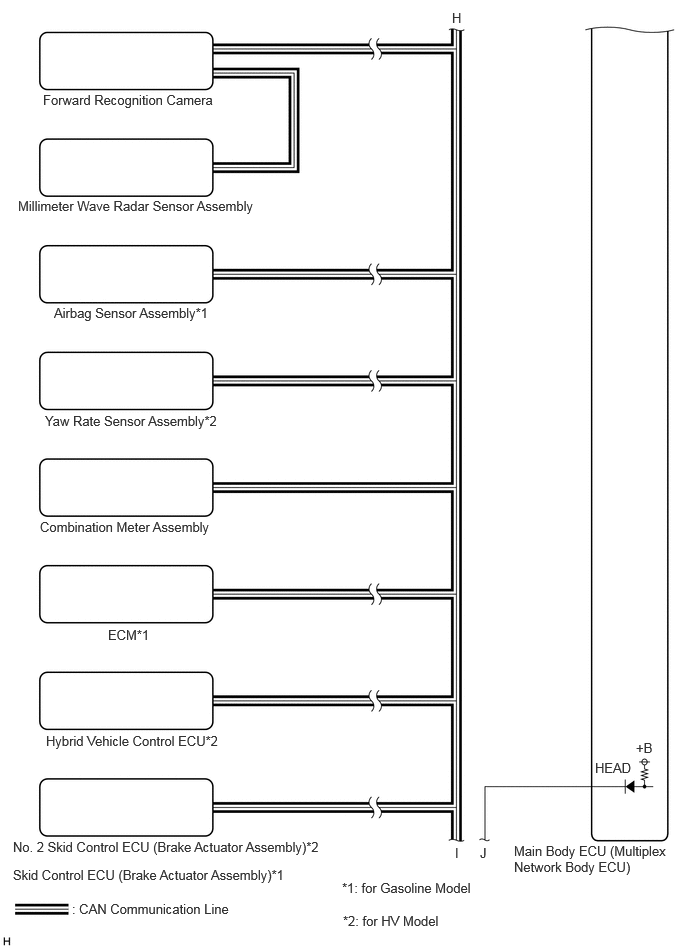

GTY921759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

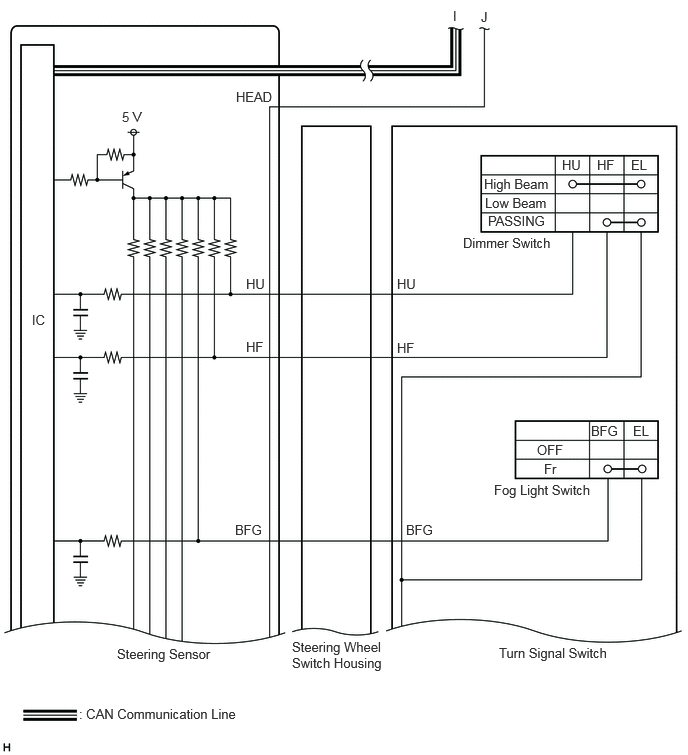

GTY896116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY902655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY902539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

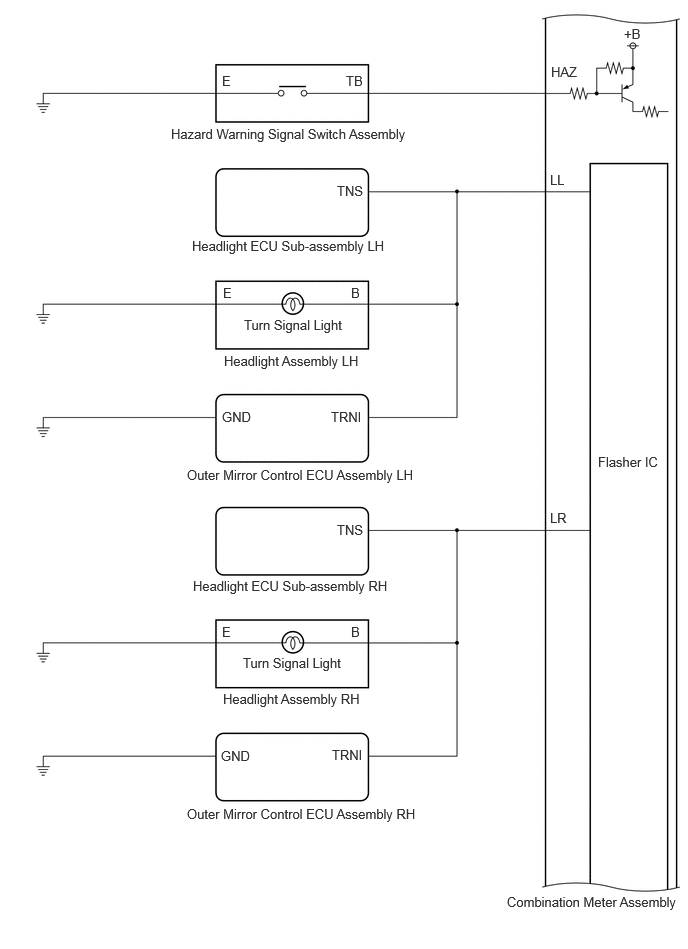

GTY936029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY934620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY929906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY944739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY842371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

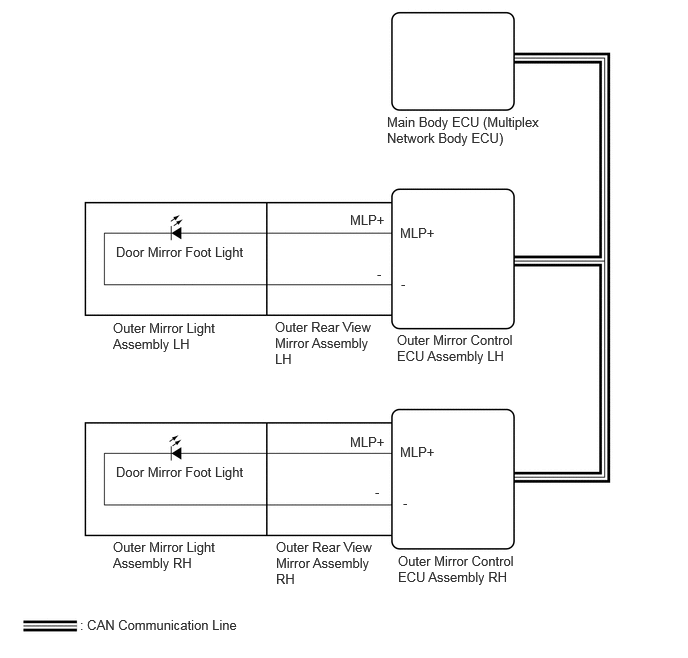

GTY906152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

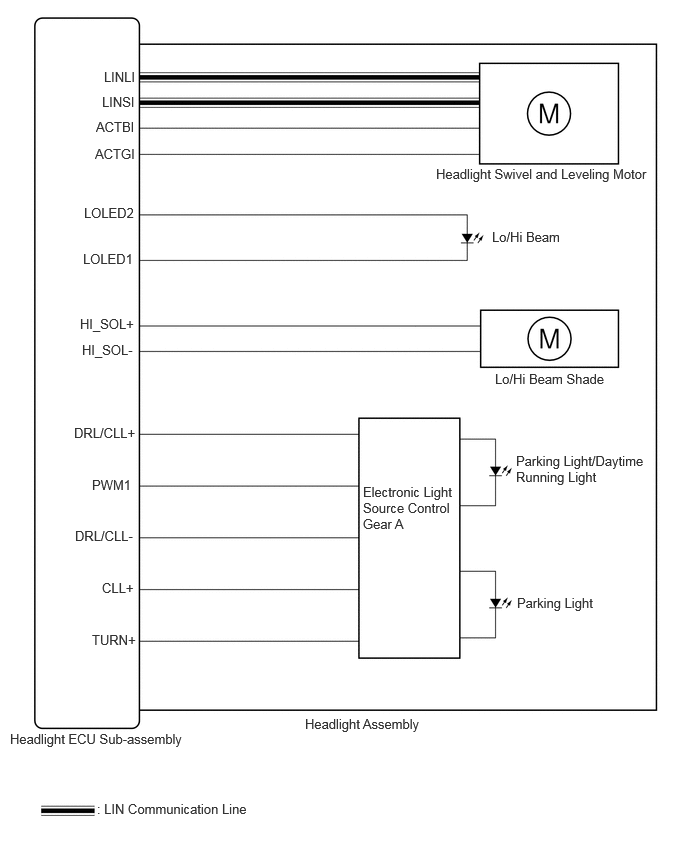

  1. HEADLIGHT ASSEMBLY CIRCUIT
    GTY906806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
