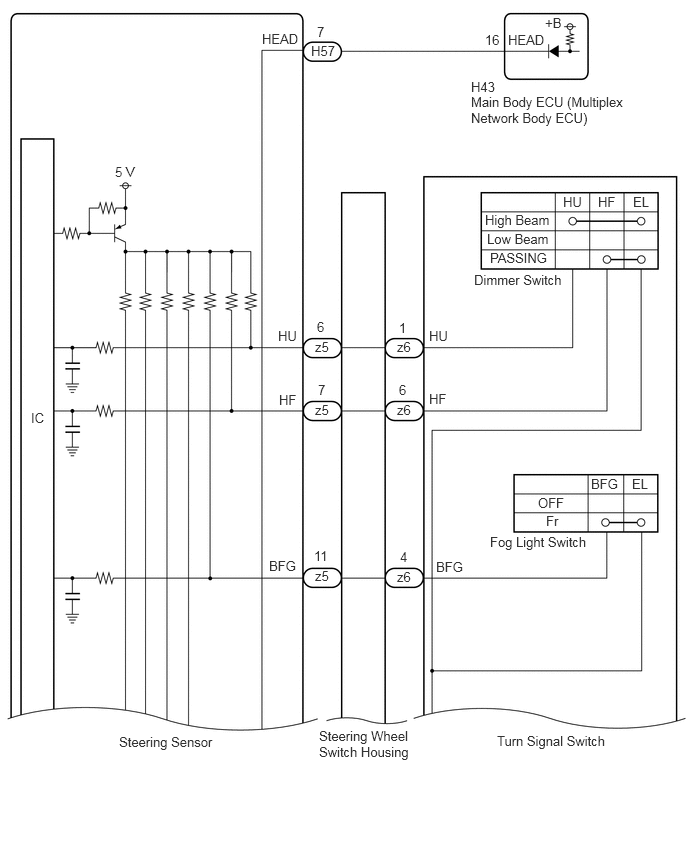

Headlight Dimmer Switch Circuit [12/2019 - 11/2023]: Wiring Diagram

GTY866500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY869439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
