LIGHTING SYSTEM (w/ AFS)
>>
Headlight Dimmer Switch Circuit [11/2023 - ]
>>
Wiring Diagram

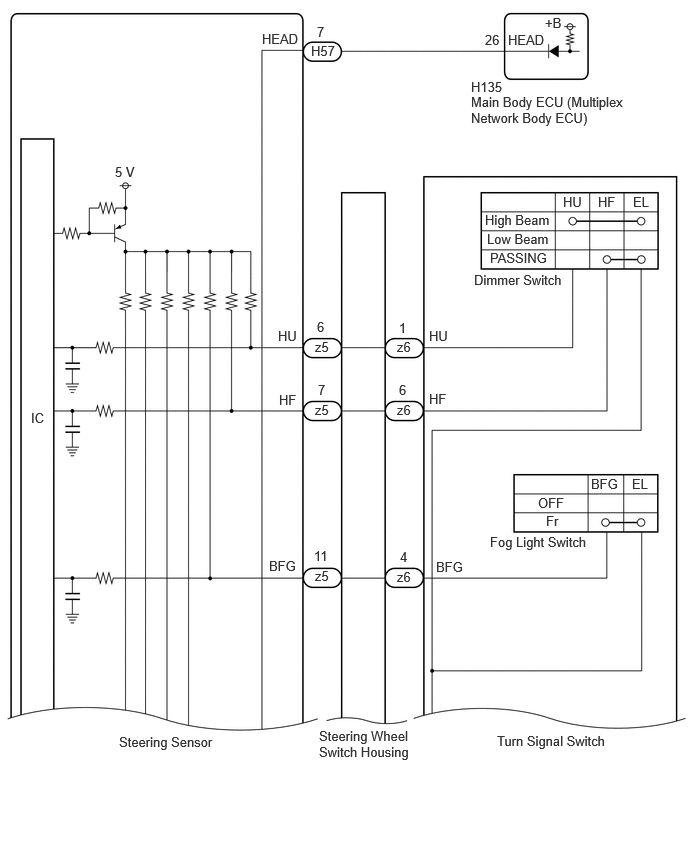

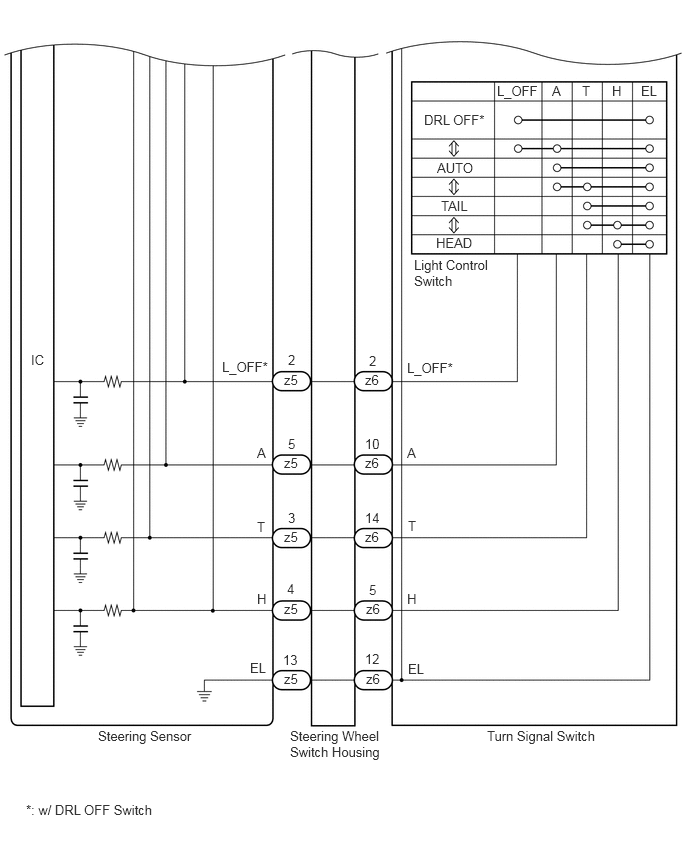

Headlight Dimmer Switch Circuit [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
