Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (W/ AFS) - Diagnostic Codes (2 Of 2), Symptom Tests & Circuit Tests >> LIGHTING SYSTEM (w/ AFS) >> Parking Light/Daytime Running Light Circuit [12/2019 - 11/2023] >> Wiring Diagram

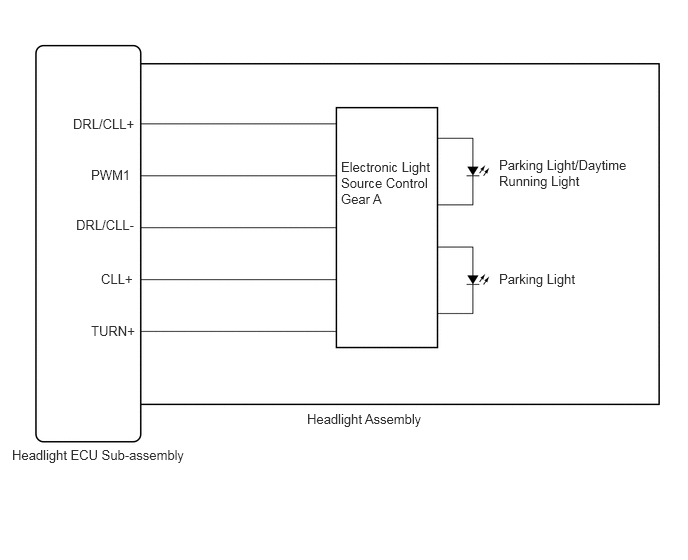

Parking Light/Daytime Running Light Circuit [12/2019 - 11/2023]: Wiring Diagram

GTY899839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
