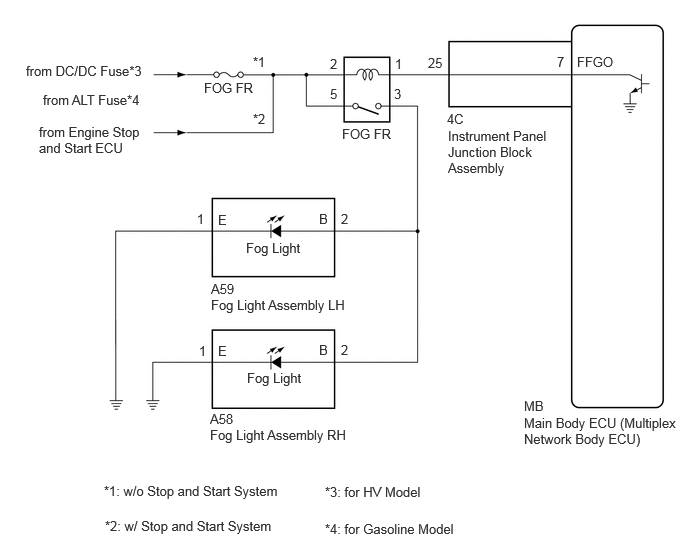

Front Fog Light Circuit [12/2019 - 11/2023]: Wiring Diagram

GTY838974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
