LIGHTING SYSTEM (w/ AFS)
>>
Back-up Light Circuit [12/2019 - 11/2023]
>>
Wiring Diagram

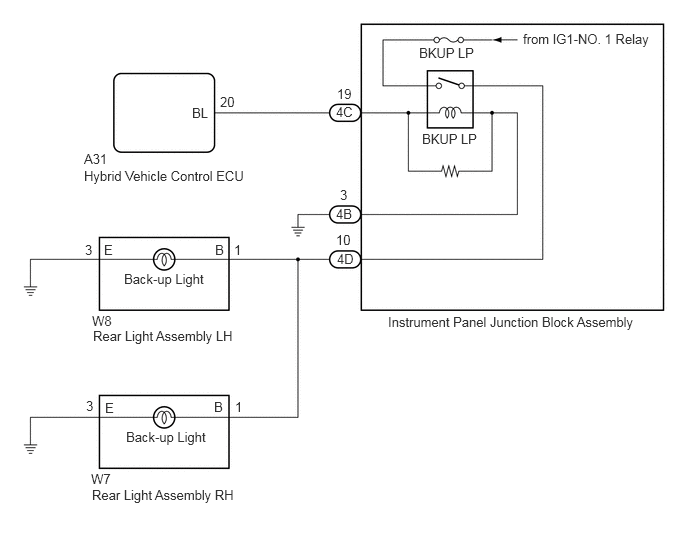

Back-up Light Circuit [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
