Lighting System (W/ AFS) - Diagnostic Codes (2 Of 2), Symptom Tests & Circuit Tests
>>
LIGHTING SYSTEM (w/ AFS)
>>
Taillight Relay Circuit [11/2023 - ]
>>
Wiring Diagram

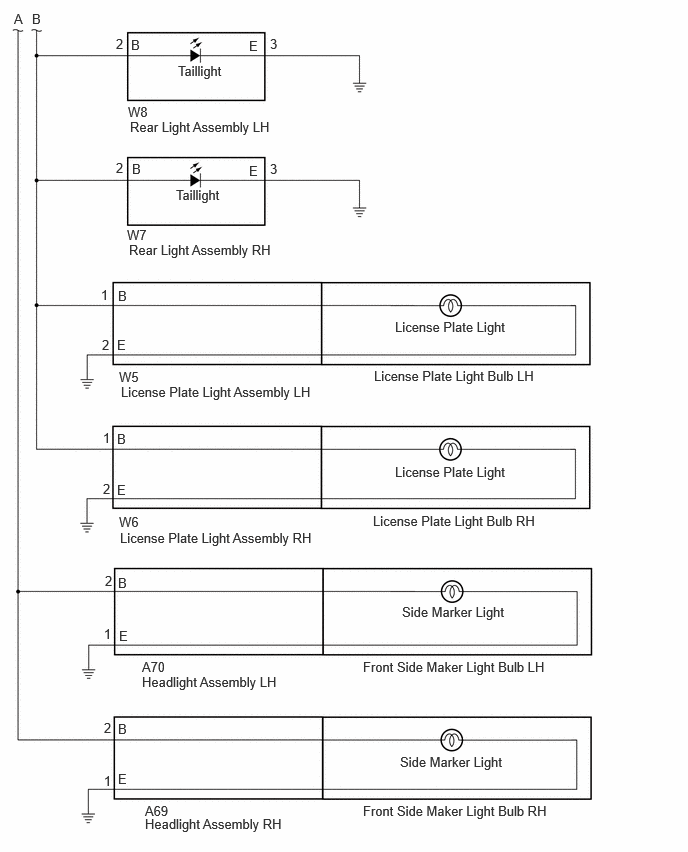

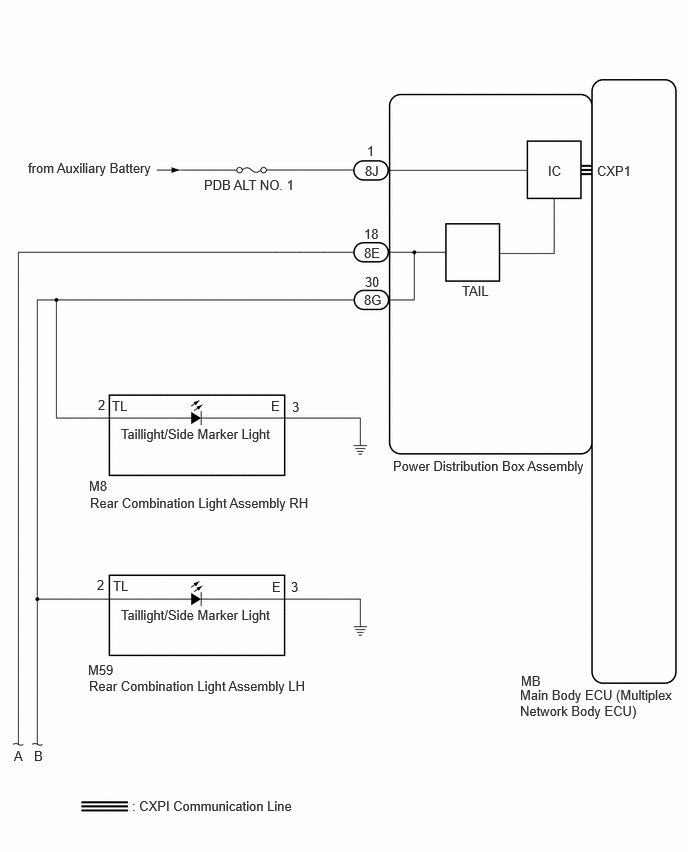

Taillight Relay Circuit [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
