Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (W/ AFS) - Diagnostic Codes (1 Of 2) >> LIGHTING SYSTEM (w/ AFS) >> DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication [12/2019 - 11/2023] >> Wiring Diagram

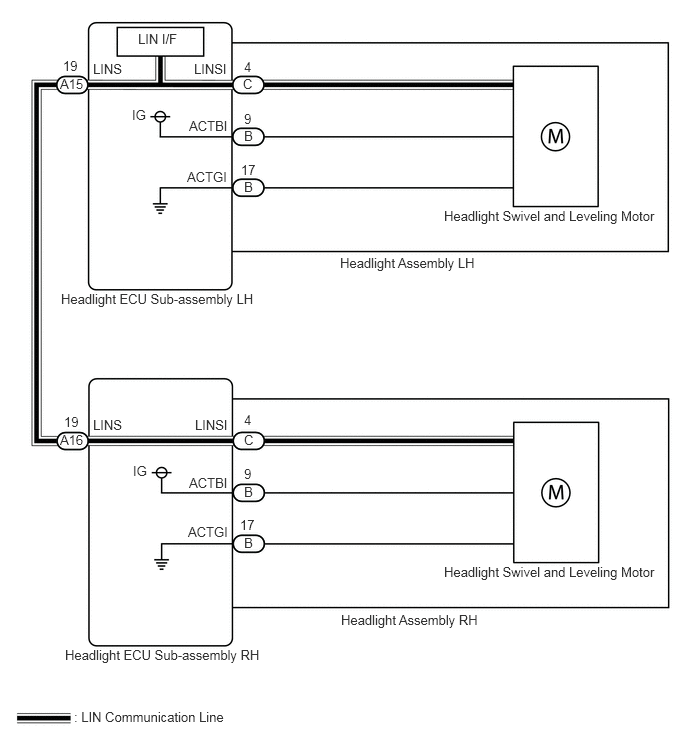

DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication [12/2019 - 11/2023]: Wiring Diagram

GTY910087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
