DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication [12/2019 - 11/2023]: Procedure

  1. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Turn the ignition switch to ON.
    2. Wait 10 seconds or more.
    3. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      OK

      DTC B2410 and B2411 are not output.

      Result

      Result Proceed to
      OK A
      NG (DTC B2410 is output) B
      NG (DTC B2411 is output) C
      NG (DTC B2410 and B2411 are output) D

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]

    Result:

    C

    See step  4

    Result:

    D

    See step  7

    Result:

    B

    See step  3

  3. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH
    GTY886199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [12/2019 - 11/2023]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A15-19 (LINS) - C-4 (LINSI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 11/2023]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [12/2019 - 11/2023]

  4. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY RH)
    1. Disconnect the A15 headlight ECU sub-assembly LH connector.
    2. Disconnect the A16 headlight ECU sub-assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A15-19 (LINS) - A16-19 (LINS) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH (LINS TERMINAL SIGNAL OUTPUT)

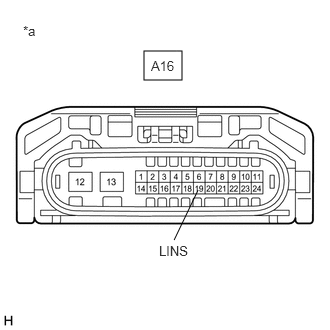

    GTY935380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Headlight ECU Sub-assembly RH)
    1. Connect the A15 headlight ECU sub-assembly LH connector.
    2. Using a GTS, check the waveform.

      OK

      Tester Connection Condition Specified Condition
      A16-19 (LINS) - Body ground Ignition switch ON Pulse generation

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [12/2019 - 11/2023]

    Result:

    OK

    See step  6

  6. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH

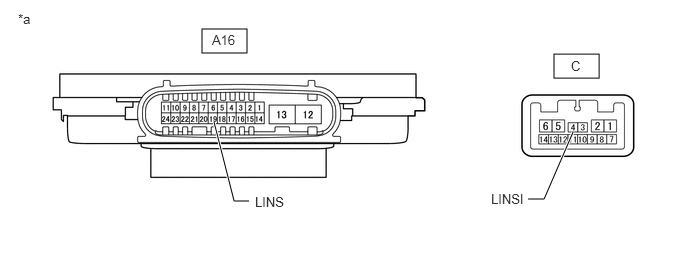

    GTY886200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [12/2019 - 11/2023]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-19 (LINS) - C-4 (LINSI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 11/2023]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [12/2019 - 11/2023]

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY RH)
    1. Disconnect the A15 headlight ECU sub-assembly LH connector.
    2. Disconnect the A16 headlight ECU sub-assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A15-19 (LINS) or A16-19 (LINS) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CLEAR DTC
    1. Connect the A15 headlight ECU sub-assembly LH connector.
    2. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  9

  9. CHECK FOR DTC
    1. Turn the ignition switch to ON.
    2. Wait 10 seconds or more.
    3. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2411 is output A
      DTC B2410 and B2411 are output B

    Result:

    B

    See step  13

    Result:

    A

    See step  10

  10. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [12/2019 - 11/2023]

    2. Connect the A16 headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  11

  11. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CHECK FOR DTC
    1. Turn the ignition switch to ON.
    2. Wait 10 seconds or more.
    3. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2411 is output A
      DTC B2410 and B2411 are output B

    Result:

    A

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 11/2023]

    Result:

    B

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [12/2019 - 11/2023]

  13. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [12/2019 - 11/2023]

    2. Connect the A15 headlight ECU sub-assembly LH connector.
    3. Connect the A16 headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  14

  14. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  15

  15. CHECK FOR DTC
    1. Turn the ignition switch to ON.
    2. Wait 10 seconds or more.
    3. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2410 is output A
      DTC B2410 and B2411 are output B

    Result:

    A

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 11/2023]

    Result:

    B

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [12/2019 - 11/2023]
