Lighting System (W/ AFS) - Diagnostic Codes (1 Of 2)
>>
LIGHTING SYSTEM (w/ AFS)
>>
DTC B2410-87: Swivel Motor LH Missing Message; DTC B2411-87: Swivel Motor RH Missing Message [11/2023 - ]
>>

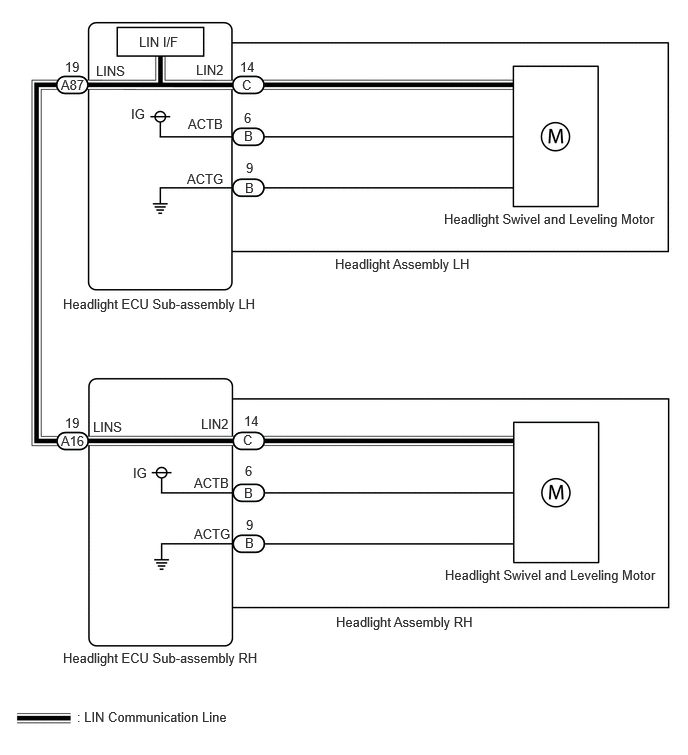

Wiring Diagram
DTC B2410-87: Swivel Motor LH Missing Message; DTC B2411-87: Swivel Motor RH Missing Message [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
