DSD Information System
Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (W/ AFS) - Diagnostic Codes (1 Of 2) >> LIGHTING SYSTEM (w/ AFS) >> DTC B2412: Headlight Swivel Motor LH; DTC B2413: Headlight Swivel Motor RH; DTC B2417: Headlight Beam Level Control Motor LH; DTC B2418: Headlight Beam Level Control Motor RH [12/2019 - 11/2023] >> Wiring Diagram

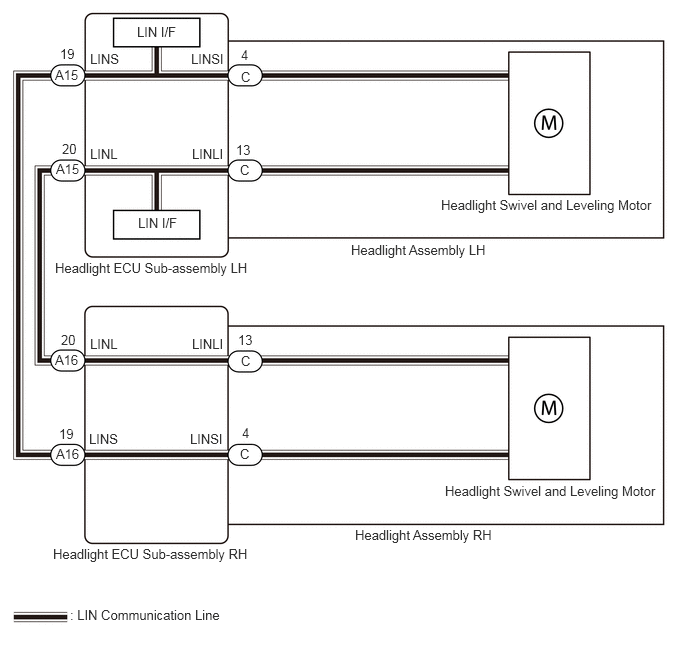

DTC B2412: Headlight Swivel Motor LH; DTC B2413: Headlight Swivel Motor RH; DTC B2417: Headlight Beam Level Control Motor LH; DTC B2418: Headlight Beam Level Control Motor RH [12/2019 - 11/2023]: Wiring Diagram

GTY861109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
