Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (W/ AFS) - Diagnostic Codes (1 Of 2) >> LIGHTING SYSTEM (w/ AFS) >> DTC B2412-00: Swivel Motor LH Malfunction; DTC B2413-00: Swivel Motor RH Malfunction; DTC B2417-00: Leveling Motor LH Malfunction; DTC B2418-00: Leveling Motor RH Malfunction [11/2023 - ] >> Wiring Diagram

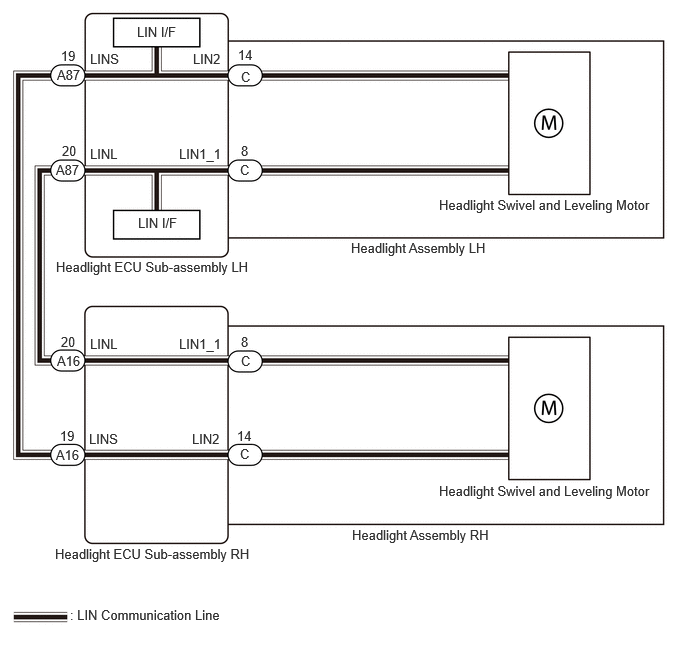

DTC B2412-00: Swivel Motor LH Malfunction; DTC B2413-00: Swivel Motor RH Malfunction; DTC B2417-00: Leveling Motor LH Malfunction; DTC B2418-00: Leveling Motor RH Malfunction [11/2023 - ]: Wiring Diagram

GTY1178934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
