LIGHTING SYSTEM (w/ AFS)
>>
DTC B2424-87: Leveling Motor LH Missing Message; DTC B2425-87: Leveling Motor RH Missing Message [11/2023 - ]
>>

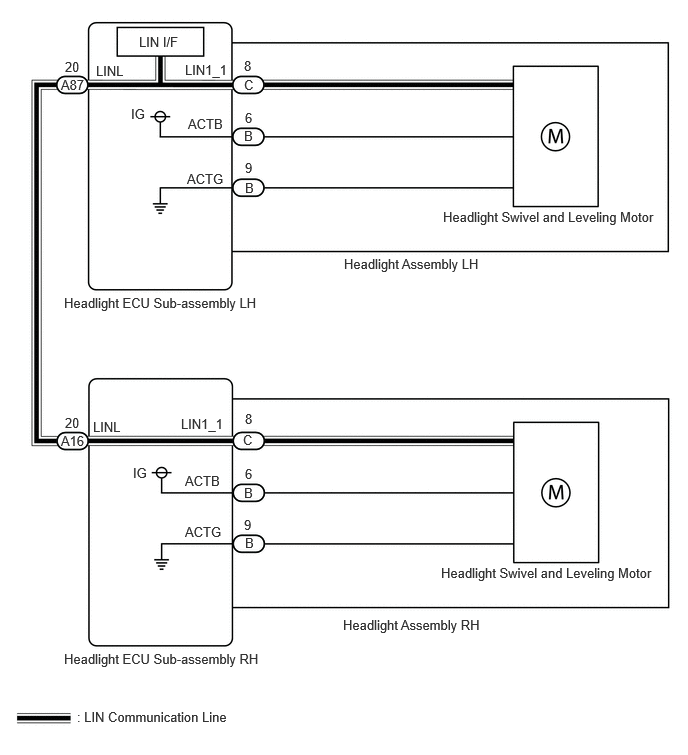

Wiring Diagram
DTC B2424-87: Leveling Motor LH Missing Message; DTC B2425-87: Leveling Motor RH Missing Message [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
