Removal [09/2020 - 11/2023]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    except Sport Package:

    Refer to REMOVAL [09/2020 - 11/2023]

    for Sport Package:

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE HEADLIGHT ASSEMBLY

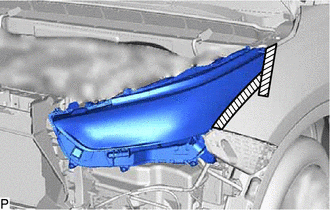

    1. Apply protective tape around the headlight assembly as shown in the illustration.
      GTY874252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the bolt and 3 screws.
      GTY871416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Screw

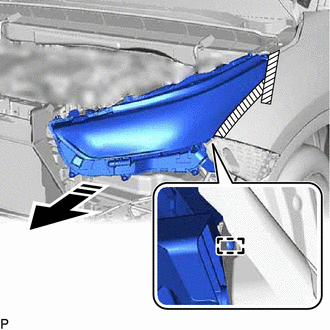

    3. Disengage the guide to separate the headlight assembly as shown in the illustration.
      GTY885963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Separate in this Direction
    4. w/o AFS:

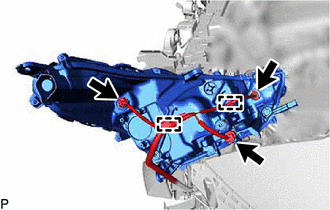

      1. Disengage the 2 clamps.
        GTY921867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 3 connectors to remove the headlight assembly.
    5. w/ AFS:

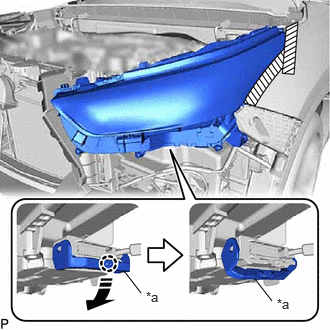

      1. Disengage the claw, pull down the connector lock lever as shown in the illustration and disconnect the connector.
        GTY901017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector Lock Lever
        Disconnect in this Direction

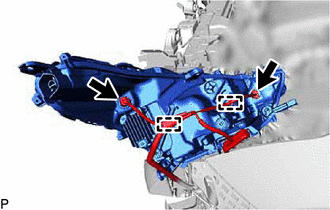

      2. Disengage the 2 clamps.
        GTY944642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the 2 connectors to remove the headlight assembly.
