Reassembly [12/2019 - ]: Procedure

  1. INSTALL FRONT SIDE MARKER LIGHT SOCKET
  2. INSTALL FRONT SIDE MARKER LIGHT BULB
    1. Install the front side marker light bulb to the front side marker light socket.
    2. Turn the front side marker light with the front side marker light bulb as shown in the illustration to install them as a unit.

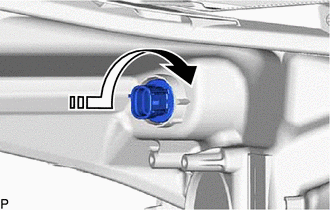

      GTY869451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL FRONT TURN SIGNAL LIGHT SOCKET
  4. INSTALL FRONT TURN SIGNAL LIGHT BULB
    1. Install the front turn signal light bulb to the front turn signal light socket.

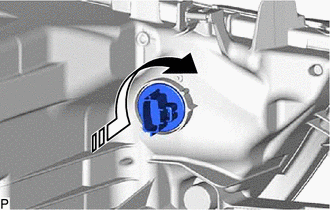

      GTY858221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.
  5. INSTALL HEADLIGHT GASKET (w/ AFS)

    See step  1

  6. INSTALL HEADLIGHT ECU SUB-ASSEMBLY (w/ AFS)

    See step  2
