Installation [12/2019 - 09/2020]: Procedure

1. w/ AFS:
   1. Engage the 2 clamps and 2 connectors.

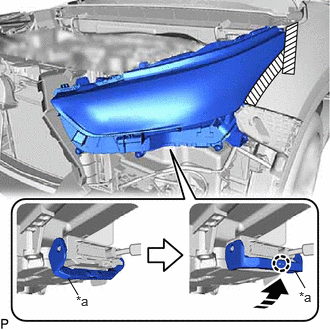

   2. Connect the connector and raise the connector lock lever to engage the claw and lock the connector as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Connector Lock Lever
      	Connect in this Direction

2. w/o AFS:
   1. Connect the 3 connectors.
   2. Engage the 2 clamps.

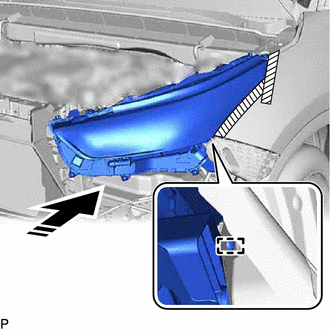

3. Engage the guide to temporarily install the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

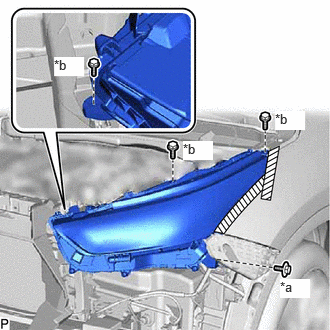

4. Install the headlight assembly with the bolt and 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt
   *b	Screw

   Bolt

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

5. Remove the protective tape.

Refer to INSTALLATION [12/2019 - 09/2020]

Refer to INITIALIZATION [12/2019 - 11/2023]

Refer to ADJUSTMENT [12/2019 - ]
