Removal [11/2023 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER

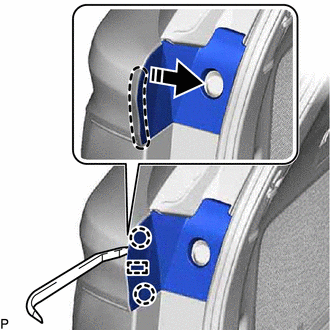

    1. Using a moulding remover, disengage the 2 claws and guide as shown in the illustration.
      GTY880600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction

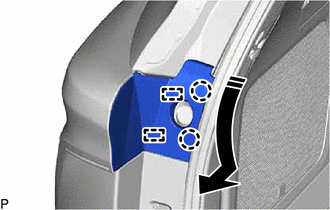

    2. Disengage the 2 claws and 2 guides to remove the rear combination light cover as shown in the illustration.
      GTY893802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY

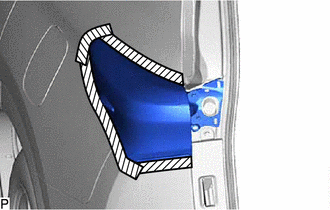

    1. Apply protective tape around the rear combination light sub-assembly as shown in the illustration.
      GTY907401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

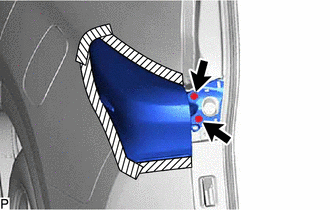

    2. Remove the 2 screws.
      GTY921568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

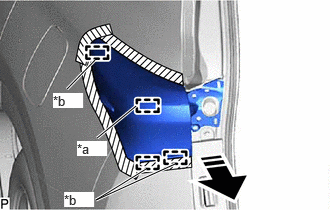

    3. Pull the rear combination light sub-assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light sub-assembly.
      GTY919345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
      Remove in this Direction
      NOTE:

      To prevent the rear combination light sub-assembly from falling when disengaging the pin and 3 guides, make sure to hold the rear combination light sub-assembly.

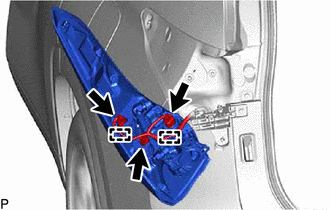

    4. Disengage the 2 guides.
      GTY944577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect 3 connectors to remove the rear combination light sub-assembly.
  3. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  4. REMOVE REAR BUMPER UPPER RETAINER

    Refer to PROCEDURE - Step 22

  5. REMOVE REAR COMBINATION LIGHT CORD

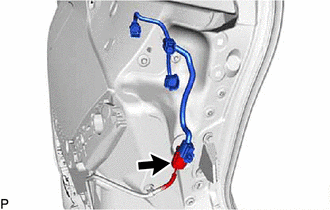

    1. Disconnect the connector to remove the rear combination light cord.
      GTY921576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
