Reassembly [12/2019 - ]: Procedure

  1. INSTALL TAIL LIGHT LED

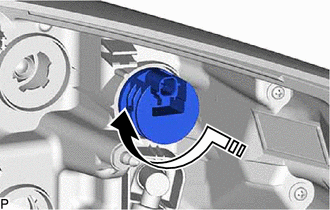

    1. Turn the tail light LED as shown in the illustration to install it.
      GTY901882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL STOP LIGHT LED

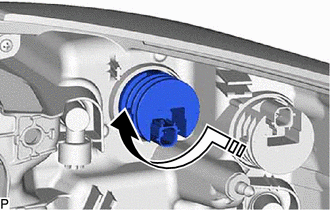

    1. Turn the stop light LED as shown in the illustration to install it.
      GTY889043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL REAR TURN SIGNAL LIGHT SOCKET
  4. INSTALL REAR TURN SIGNAL LIGHT BULB
    1. Install the rear turn signal light bulb to the rear turn signal light socket.

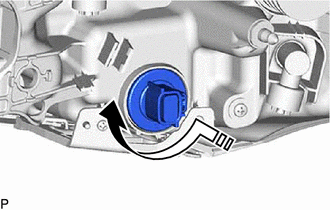

    2. Turn the rear turn signal light socket with the rear turn signal light bulb as shown in the illustration to install them as a unit.
      GTY875301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
