Disassembly [12/2019 - ]: Procedure

  1. REMOVE BACK-UP LIGHT BULB

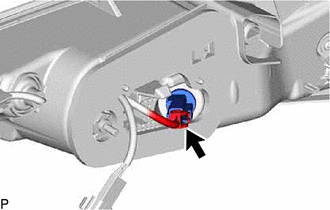

    1. Disconnect the connector.
      GTY921613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

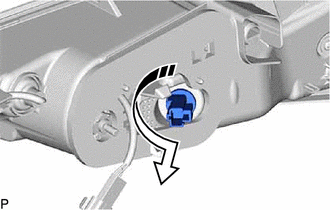

    2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to remove them as a unit.
      GTY860121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the back-up light bulb from the rear light socket and wire.
  2. REMOVE REAR LIGHT SOCKET AND WIRE
  3. REMOVE REAR LIGHT LED

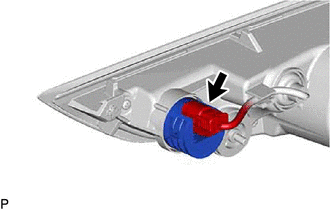

    1. Disconnect the connector.
      GTY915913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

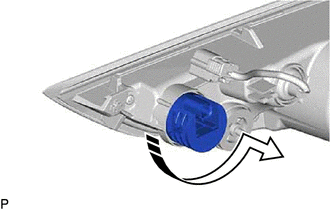

    2. Turn the rear light LED as shown in the illustration to remove it.
      GTY850600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE REAR LIGHT PACKING

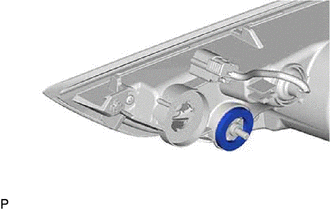

    1. Remove the rear light packing.
      GTY921600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be sure to remove all traces of the old rear light packing from the vehicle body.
      • Do not reuse the removed rear light packing. Be sure to install a new rear light packing to prevent water ingress.
  5. REMOVE REAR LIGHT GASKET

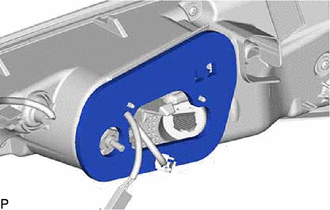

    1. Remove the rear light gasket.
      GTY921599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be sure to remove all traces of the old rear light gasket from the vehicle body.
      • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.
