Components [10/2022 - ]

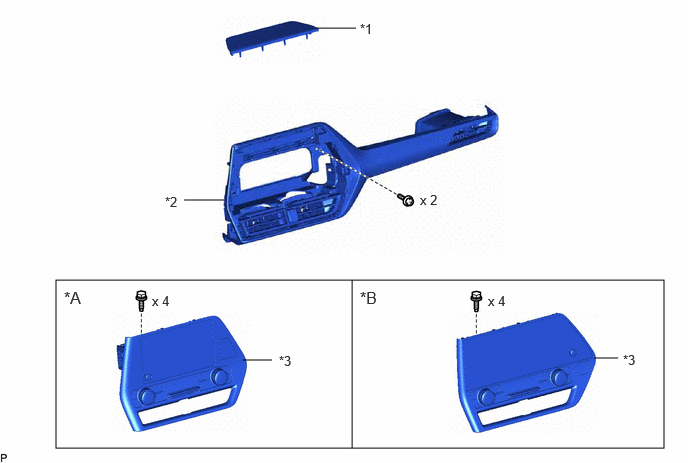

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 8 Inch Display | *B | for 12.3 Inch Display |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *3 | RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL | - | - |

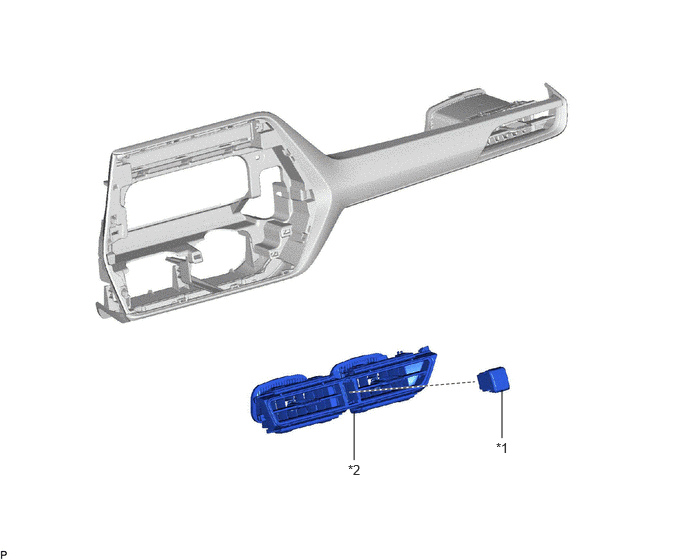

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
