Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE REAR WHEEL (for LH Side)

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH
    NOTE:

    If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one.

    1. Disconnect the connector.

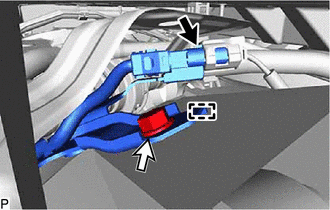

      GTY866969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt
    2. Remove the bolt.
    3. Disengage the guide.
    4. Remove the bolt and 2 nuts.

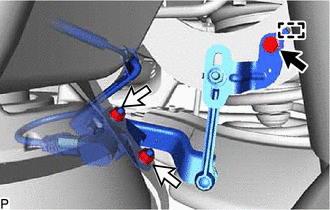

      GTY867379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    5. Disengage the guide to remove the rear height control sensor sub-assembly LH.
