Removal [11/2023 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE HEADLIGHT ECU SUB-ASSEMBLY
    NOTE:

    If the headlight ECU sub-assembly has been struck or dropped, replace it with a new one.

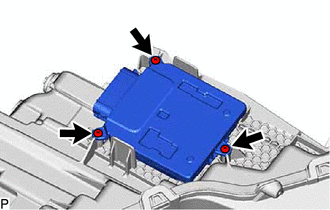

    1. Remove the 3 screws.
      GTY944581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

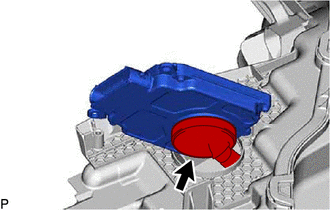

    2. Separate the connector cover from the headlight ECU sub-assembly.
      GTY921583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

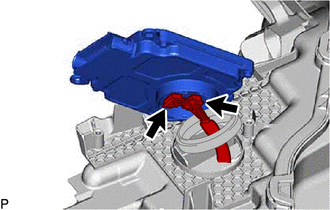

    3. Disconnect the 2 connectors to remove the headlight ECU sub-assembly.
      GTY921582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HEADLIGHT GASKET
    NOTE:

    Make sure to replace the headlight gasket with a new one. Failure to do so may cause water ingress.

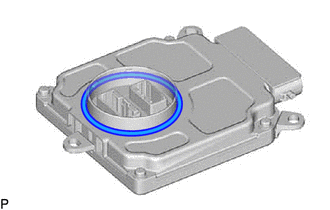

    1. Remove the headlight gasket.
      GTY921581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
