TOYOTA Audio Multimedia System
>>
System Diagram [12/2019 - 10/2022]
>>
System Diagram [12/2019 - 10/2022]
System Diagram [12/2019 - 10/2022]

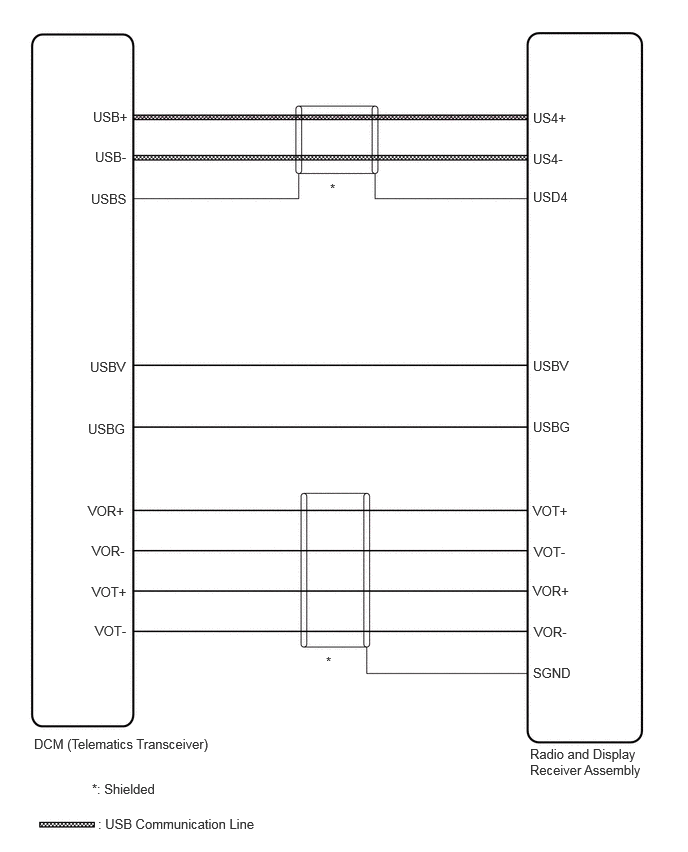

w/o Navigation System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

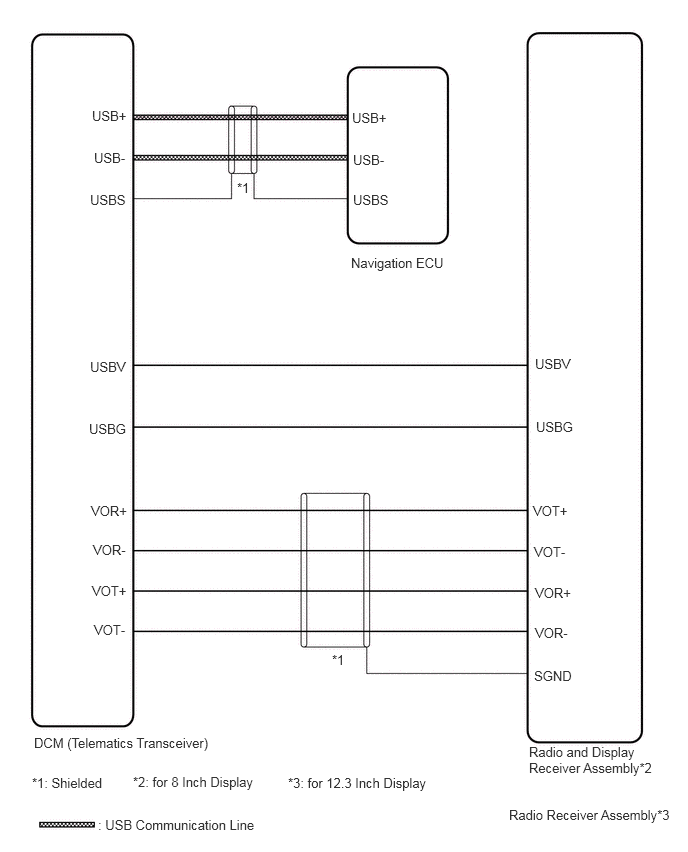

w/ Navigation System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
