Installation [10/2022 - ]: Procedure

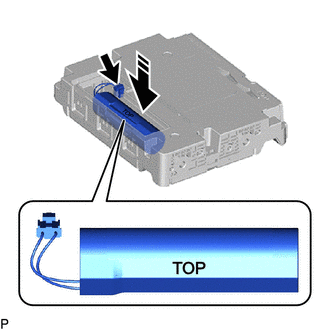

1. Connect the connector and install the back-up battery with the "TOP" mark facing upward as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

   NOTE:

   Make sure that the connector is connected securely.

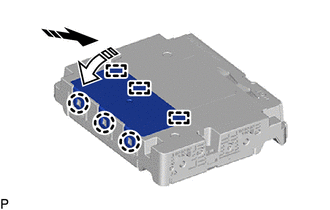

2. Engage the 3 guides and 3 claws as shown in the illustration to install the transceiver cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

   NOTE:

   Make sure that the transceiver cover is securely installed.

Refer to INSTALLATION [12/2019 - ]

Refer to INITIALIZATION [12/2019 - ]
