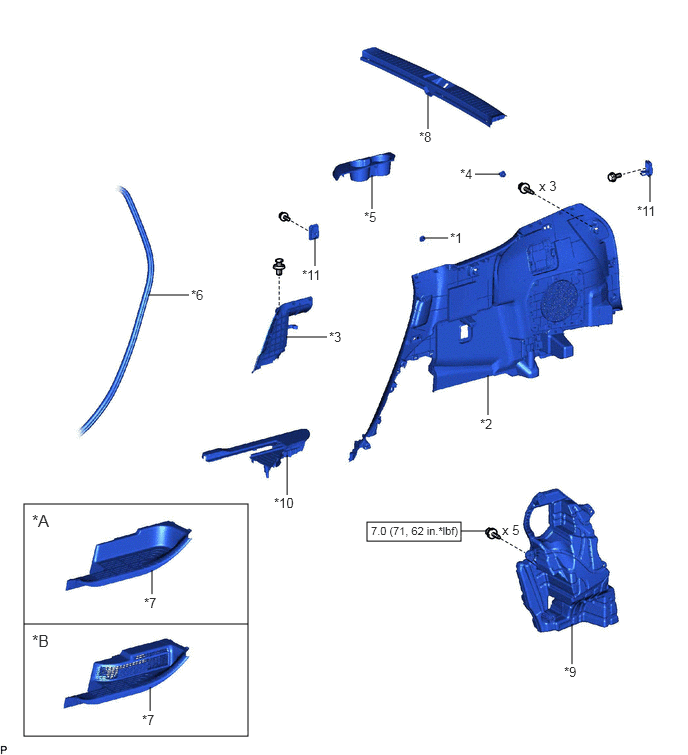

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Gasoline Model | *B | for HV Model |
| *1 | DECK TRIM POCKET COVER | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | FRONT DECK SIDE TRIM COVER LH | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | NO. 2 DECK SIDE TRIM COVER | *6 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *7 | REAR DOOR SCUFF PLATE LH | *8 | REAR FLOOR FINISH PLATE |
| *9 | REAR NO. 2 SPEAKER ASSEMBLY | *10 | REAR OUTER SEAT TRACK BRACKET COVER LH |
| *11 | ROPE HOOK | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
