DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio / Video System - Diagnostic Codes (1 Of 2)
>>
Audio And Visual System
>>
DTC B15DB-87: Telematics Transceiver Missing Message [11/2023 - ]
>>
Wiring Diagram

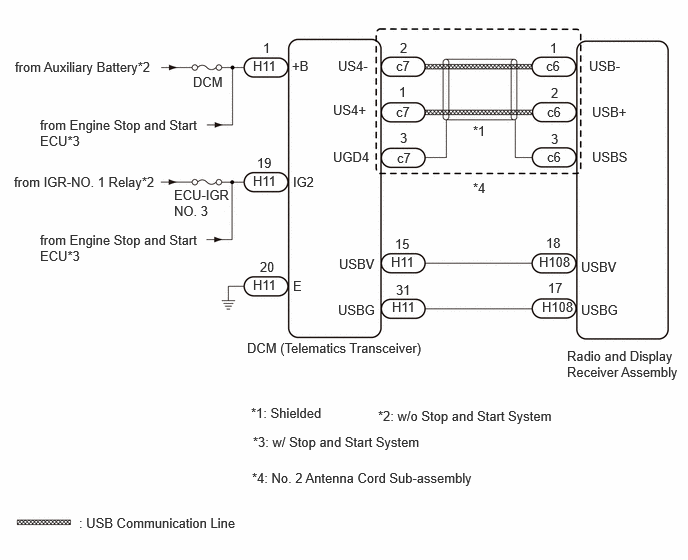

DTC B15DB-87: Telematics Transceiver Missing Message [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
