Door Lock System - Service Information
>>
Door Control Transmitter
>>
Components [12/2019 - ]
Components [12/2019 - ]

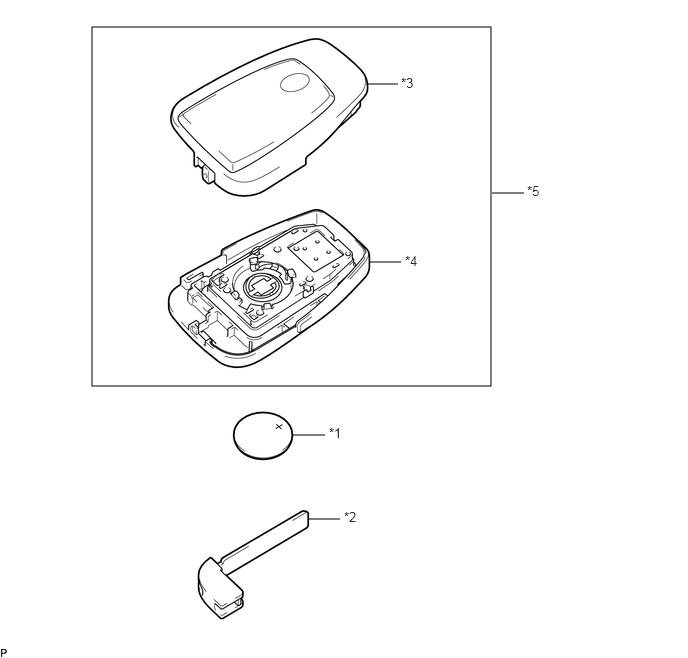

Fig 1: Door Control Transmitter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
TRANSMITTER BATTERY
*2
MECHANICAL KEY
*3
TRANSMITTER HOUSING COVER
*4
TRANSMITTER HOUSING CASE
*5
SMART KEY DOOR CONTROL TRANSMITTER HOUSING SET
-
-
