Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

    for UA80E:

    Refer to REMOVAL [12/2019 - 10/2022]

    for UA80F:

    Refer to REMOVAL [12/2019 - 10/2022]

    for P810:

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

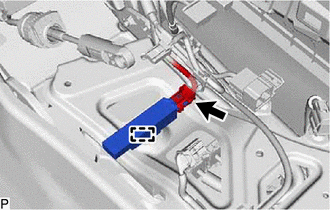

    1. Disengage the clamp.
      GTY902811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 indoor electrical key antenna assembly.
      NOTE:

      Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
