SMART KEY SYSTEM (for Entry Function)
>>
Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration [11/2023 - ]
>>

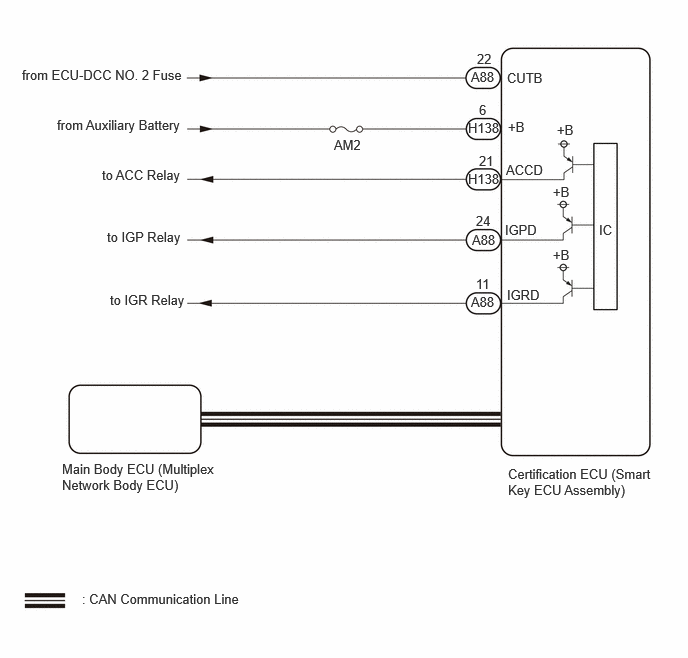

Wiring Diagram
Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
