Inspection [12/2019 - ]: Procedure

  1. INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY LH
    1. Check the operation of the door lock motor.

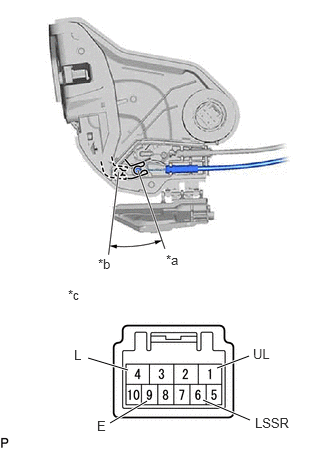

      GTY868155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Unlock
      *b Lock
      *c Component without harness connected
      (Rear Door Lock with Motor Assembly LH)
      1. Apply auxiliary battery voltage and check the operation of the door lock motor.

        OK

        Auxiliary Battery Connection Result
        Auxiliary battery positive (+) → Terminal 4 (L)
        Auxiliary battery negative (-) → Terminal 1 (UL)        		 Locks
        Auxiliary battery positive (+) → Terminal 1 (UL)
        Auxiliary battery negative (-) → Terminal 4 (L)        		 Unlocks

        If the result is not as specified, replace the rear door lock with motor assembly LH.

    2. Check the operation of the unlock detection switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        6 (LSSR) - 9 (E) Locked 10 kΩ or higher
        6 (LSSR) - 9 (E) Unlocked Below 1 Ω

        If the result is not as specified, replace the rear door lock with motor assembly LH.

  2. INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY RH
    1. Check the operation of the door lock motor.

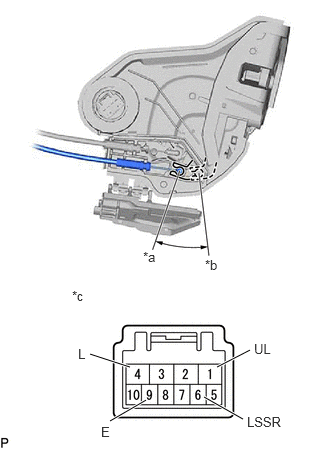

      GTY863726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Unlock
      *b Lock
      *c Component without harness connected
      (Rear Door Lock with Motor Assembly RH)
      1. Apply auxiliary battery voltage and check the operation of the door lock motor.

        OK

        Auxiliary Battery Connection Result
        Auxiliary battery positive (+) → Terminal 4 (L)
        Auxiliary battery negative (-) → Terminal 1 (UL)        		 Locks
        Auxiliary battery positive (+) → Terminal 1 (UL)
        Auxiliary battery negative (-) → Terminal 4 (L)        		 Unlocks

        If the result is not as specified, replace the rear door lock with motor assembly RH.

    2. Check the operation of the unlock detection switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        6 (LSSR) - 9 (E) Locked 10 kΩ or higher
        6 (LSSR) - 9 (E) Unlocked Below 1 Ω

        If the result is not as specified, replace the rear door lock with motor assembly RH.
